LTC2471IMS#PBF - Analog Devices

Description: Analog to Digital Converters - ADC Selectable 208Hz/833Hz, Single-Ended, 16-Bit delta sigma ADC with 10ppm/deg C Max Reference and I2C Interface

Download LTC2471IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

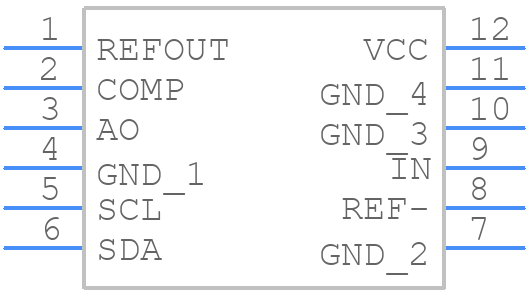

Symbol
LTC2471IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2471IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC2865IMSE
click to zoom
3D Models
LTC2471IMS#PBF - Analog Devices - 3D model - Small Outline Packages - LTC2865IMSE
click to zoom

LTC2471IMS#PBF Details

  • Manufacturer Part Number:

    LTC2471IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    1.253 V

  • Conversion Time-Max:

    4800 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2471IMS#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2471IMS#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) to minimize noise pickup. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the analog and digital signals separate.
  • The LTC2471IMS#PBF does not require calibration. It has an internal calibration circuit that ensures accurate readings. However, it is recommended to follow the recommended layout and placement guidelines to minimize noise and ensure accurate readings.
  • The maximum sampling rate of the LTC2471IMS#PBF is 15.5ksps (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency and the ADC's conversion time.
  • No, the LTC2471IMS#PBF is designed to operate with a 2.7V to 5.5V power supply. Using a 5V power supply may exceed the device's absolute maximum rating and may cause damage to the device.
  • The LTC2471IMS#PBF outputs 24-bit data in a 2's complement format. The output data can be handled by most microcontrollers or digital signal processors. It is recommended to use a FIFO (First-In-First-Out) buffer to handle the output data and to ensure that the data is not lost or corrupted.
