LTC2496CUHF#PBF - Analog Devices

Description: 16-Bit 8-/16-Channel ΔΣ ADC with Easy Drive Input Current Cancellation

Download LTC2496CUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

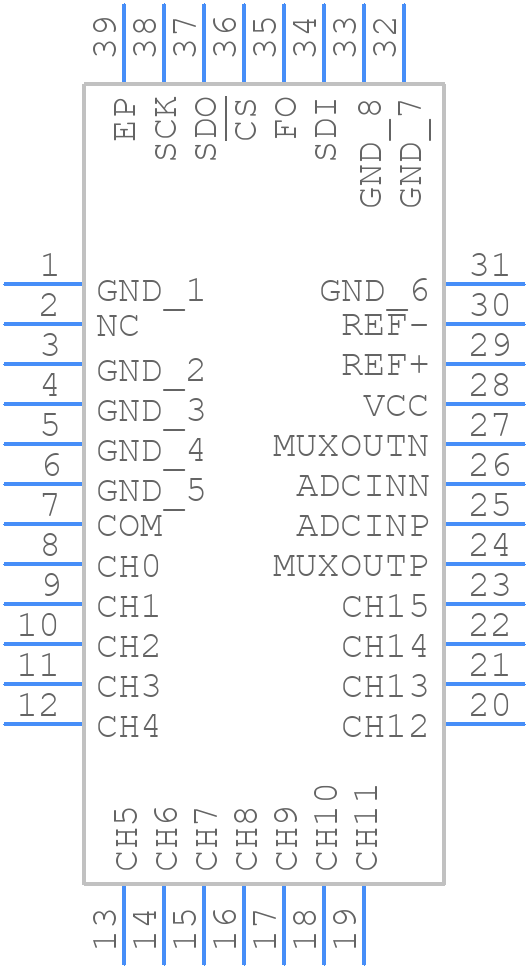

Symbol
LTC2496CUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2496CUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 38-Lead (5mm × 7mm) Plastic QFN
click to zoom
3D Models
LTC2496CUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 38-Lead (5mm × 7mm) Plastic QFN
click to zoom

LTC2496CUHF#PBF Details

  • Manufacturer Part Number:

    LTC2496CUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 7 MM, LEAD FREE, PLASTIC, MO-220WHKD, QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    149900 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.275 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2496CUHF#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2496CUHF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the LTC2496CUHF in noisy environments, use a low-pass filter on the input signals, use a shielded enclosure, and keep the device away from high-frequency sources. Additionally, use a common-mode filter on the input signals and consider using a differential amplifier to reject common-mode noise.
  • The maximum sampling rate that can be achieved with the LTC2496CUHF is 15ksps, but this can be limited by the system's noise floor, the input signal's bandwidth, and the device's settling time. It's recommended to consult the datasheet and application notes for more information on achieving the maximum sampling rate.
  • The LTC2496CUHF does not require calibration, as it has an internal calibration circuit that sets the gain and offset. However, it's recommended to perform a system-level calibration to ensure optimal performance, which involves adjusting the input signal range, gain, and offset to match the system's requirements.
  • The power consumption of the LTC2496CUHF is typically around 10mA, but this can vary depending on the sampling rate, input signal range, and operating conditions. It's recommended to consult the datasheet and application notes for more information on power consumption and power management.
