LTC2600CUFD#PBF - Analog Devices

Description: Octal 16-Bit Rail-to-Rail DACs in 16-Lead SSOP

Download LTC2600CUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

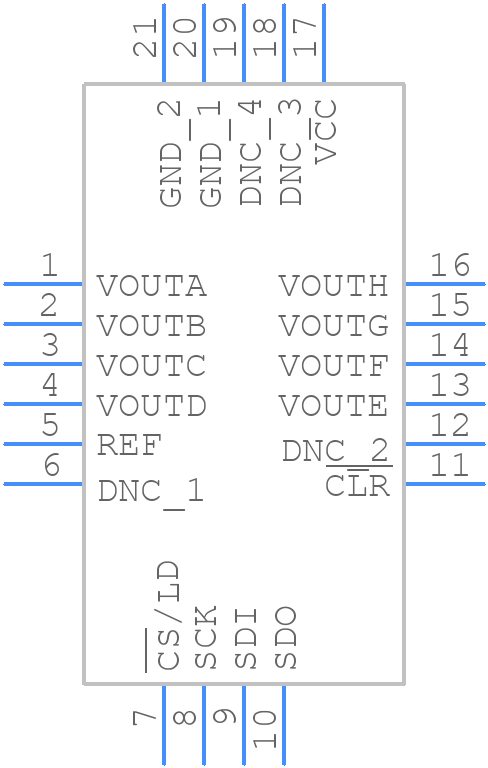

Symbol
LTC2600CUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2600CUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC2600CUFD#PBF/*
click to zoom
3D Models
LTC2600CUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC2600CUFD#PBF/*
click to zoom

LTC2600CUFD#PBF Details

  • Manufacturer Part Number:

    LTC2600CUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1711

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC2600CUFD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2600CUFD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from noise sources.
  • To ensure accurate voltage regulation with the LTC2600CUFD, it's essential to follow the recommended layout and placement guidelines, use a high-quality voltage reference, and ensure that the input voltage is within the specified range. Additionally, the output voltage should be decoupled with a low-ESR capacitor, and the device should be operated within the specified temperature range.
  • The maximum output current capability of the LTC2600CUFD is 20mA. However, it's recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • The output voltage of the LTC2600CUFD can be programmed using an external resistor divider network connected to the VOUT pin. The output voltage can be calculated using the formula: VOUT = (R1/R2) * (VREF - VOFFSET), where R1 and R2 are the resistors in the divider network, VREF is the internal voltage reference, and VOFFSET is the offset voltage.
  • The power-on reset (POR) timing of the LTC2600CUFD is typically around 10ms, but it can vary depending on the input voltage and the output capacitor value. It's essential to ensure that the output voltage is stable before enabling the load to avoid any potential issues.
