LTC2624CGN#PBF - Analog Devices

Description: LTC2624CGN#PBF, 12 bit-Bit DAC Quad SPI, Microwire, 16-Pin SSOP N

Download LTC2624CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

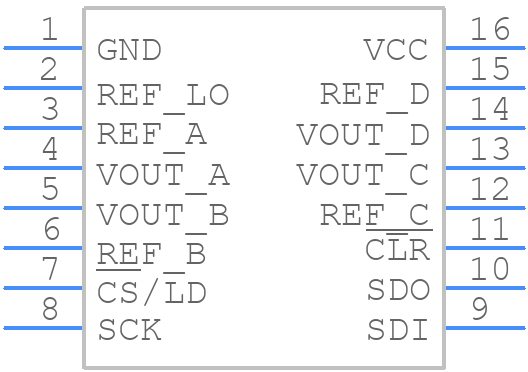

Symbol
LTC2624CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2624CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)
click to zoom
3D Models
LTC2624CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN(DFN)
click to zoom

LTC2624CGN#PBF Details

  • Manufacturer Part Number:

    LTC2624CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2624CGN#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing for the LTC2624CGN involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure an accurate voltage reference, use a high-precision voltage reference, such as the ADR4520, and connect it to the VREF pin of the LTC2624CGN. Also, ensure that the voltage reference is properly decoupled and bypassed.
  • The recommended power-up sequence for the LTC2624CGN is to first apply the analog supply voltage (AVCC), followed by the digital supply voltage (DVCC), and then the clock signal. This ensures that the DAC is properly initialized and configured.
  • To minimize noise and interference, use a low-noise power supply, decouple the power supplies with high-quality capacitors, and use a shielded enclosure for the PCB. Also, keep the analog and digital circuits separate and use a ground plane to reduce electromagnetic interference.
  • The maximum clock frequency for the LTC2624CGN is 50 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
