LTC2625CGN#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Octal 12-bit I2C Voltage Output DAC

Download LTC2625CGN#PBF Model

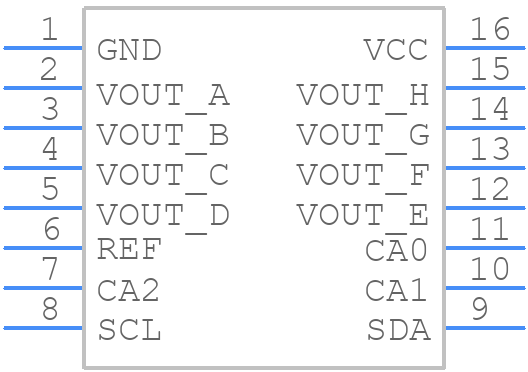

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2625CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC2625CGN#PBF - Analog Devices  - 3D model - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC2625CGN#PBF Details

  • Manufacturer Part Number:

    LTC2625CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2625CGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2625CGN#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure the LTC2625CGN#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be added if necessary. The operating temperature range is -40°C to 125°C.
  • The recommended power-up sequence for the LTC2625CGN#PBF is to first apply the analog supply voltage (VCC) and then the digital supply voltage (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps prevent unwanted digital noise from affecting the analog signals.
  • The LTC2625CGN#PBF's digital interface requires a 3.3V or 5V CMOS-compatible signal. The digital inputs should be driven from a low-impedance source, and the signal rise and fall times should be less than 10ns. Additionally, the digital signals should be properly terminated to prevent reflections and ensure signal integrity.
  • When designing a PCB for the LTC2625CGN#PBF, it's essential to consider the analog and digital signal return paths, keep the analog and digital grounds separate, and use a solid ground plane. Additionally, the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
