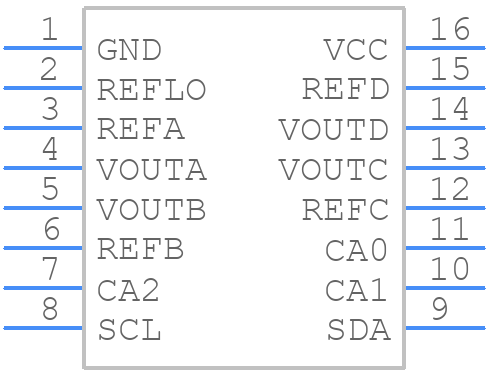

LTC2629CGN-1#PBF - Analog Devices

LTC2629CGN-1#PBF Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the LTC2629CGN-1#PBF to minimize noise and ensure optimal performance?
  The recommended layout and placement for the LTC2629CGN-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
• How do I ensure the LTC2629CGN-1#PBF is properly calibrated for my specific application?
  To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using a calibration routine in your firmware to compensate for any variations in the device's performance over temperature and time.
• What are the thermal considerations for the LTC2629CGN-1#PBF, and how can I ensure reliable operation over temperature?
  The LTC2629CGN-1#PBF has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and avoid operating the device near its maximum temperature rating. Also, consider using thermal simulation tools to model the thermal performance of your design.
• How do I handle electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues with the LTC2629CGN-1#PBF?
  To minimize EMI and ensure EMC, use proper shielding, grounding, and filtering techniques in your design. Ensure that the device is placed in a shielded area, and use ferrite beads or common-mode chokes to filter out high-frequency noise. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing trace lengths.
• What are the power sequencing requirements for the LTC2629CGN-1#PBF, and how do I ensure proper power-up and power-down sequences?
  The LTC2629CGN-1#PBF requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is to apply VCC before applying the analog input voltage. During power-down, the analog input voltage should be removed before removing VCC. Additionally, consider using a power sequencing controller or a reset controller to ensure a clean power-up and power-down sequence.
