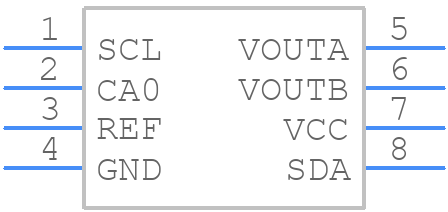

LTC2633ACTS8-LZ12#TRMPBF - Analog Devices

LTC2633ACTS8-LZ12#TRMPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC2633?
  A good PCB layout for the LTC2633 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
• How do I ensure accurate voltage output from the LTC2633?
  To ensure accurate voltage output from the LTC2633, it is essential to use high-precision external resistors for the voltage divider, keep the input voltage within the recommended range, and minimize noise and interference on the input and output pins. Additionally, the device should be operated within its recommended operating temperature range.
• What is the maximum output current capability of the LTC2633?
  The maximum output current capability of the LTC2633 is 50mA per channel. However, the device can source or sink up to 100mA of current in total across all channels. It is essential to ensure that the output current does not exceed the recommended maximum to prevent overheating and damage to the device.
• How do I program the LTC2633 to output a specific voltage?
  The LTC2633 can be programmed to output a specific voltage using a 3-wire serial interface. The device has a 16-bit DAC that can be programmed using a serial data input (SDI), a clock input (SCK), and a load DAC input (LDAC). The desired output voltage can be calculated using the formula VOUT = (VREF x D) / 65536, where VREF is the reference voltage and D is the 16-bit digital code.
• What is the power-on reset behavior of the LTC2633?
  The LTC2633 has a power-on reset (POR) circuit that ensures the device's output is in a high-impedance state during power-up. When the input voltage exceeds the POR threshold, the device's output is enabled, and the DAC is loaded with the default code. The POR circuit ensures that the device's output is stable and accurate during power-up.
