LTC2637IMS-LMI12#PBF - Analog Devices

Description: 12 Bit Digital to Analog Converter 8 16-MSOP

Download LTC2637IMS-LMI12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

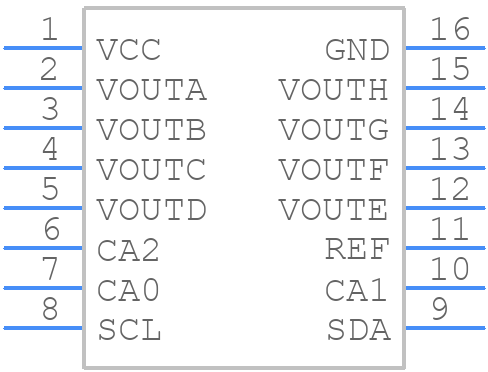

LTC2637IMS-LMI12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2637IMS-LMI12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2022
click to zoom
3D Models
LTC2637IMS-LMI12#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2022
click to zoom

LTC2637IMS-LMI12#PBF Details

  • Manufacturer Part Number:

    LTC2637IMS-LMI12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2637IMS-LMI12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2637IMS-LMI12#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2637IMS-LMI12#PBF requires a single 2.7V to 5.5V power supply. It's recommended to use a low-noise power supply and to ensure that the power supply is stable before applying the input signal. The power sequencing requirements are not critical, but it's recommended to power up the device before applying the input signal.
  • The maximum operating temperature range for the LTC2637IMS-LMI12#PBF is -40°C to 125°C. The device's performance may be affected by temperature, with increased temperature resulting in increased power consumption and decreased accuracy. It's recommended to operate the device within the specified temperature range for optimal performance.
  • The LTC2637IMS-LMI12#PBF can be programmed using a serial interface (SPI) or an I2C interface. The device can be programmed to set the output voltage, output current, and other parameters. The available programming options include setting the output voltage to a specific value, setting the output current limit, and enabling/disabling the output.
  • The LTC2637IMS-LMI12#PBF is a high-frequency device and can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency noise sources, and use a low-pass filter on the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2637IMS-LMI12#PBF Overview

Use the download button to access the LTC2637IMS-LMI12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
