LTC2637IMS-LZ10#PBF - Analog Devices

Description: n Integrated Precision Reference: 2.5V Full-Scale 10ppm/°C (LTC2637-L) 4.096V Full-Scale 10ppm/°C (LTC2637-H) n Maximum INL Error: 2.5LSB (LTC2637-12) n Low Noise: 0.75mVP-P 0.1Hz to 200kHz n Guaranteed Monotonic Over –40°C to 125°C Temperature Range n Selectable Internal or External Reference n 2.7V to 5.5V Supply Range (LTC2637-L) n Ultralow Crosstalk Between DACs (<3nV• s) n Low Power: 100µA per DAC at 3V (LTC2637-L) n Power-On-Reset to Zero-Scale/Mid-Scale n Double-Buffered Data Latches n T

Download LTC2637IMS-LZ10#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

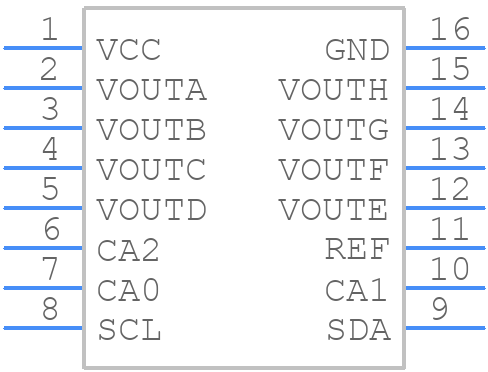

LTC2637IMS-LZ10#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2637IMS-LZ10#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)--2025
click to zoom
3D Models
LTC2637IMS-LZ10#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)--2025
click to zoom

LTC2637IMS-LZ10#PBF Details

  • Manufacturer Part Number:

    LTC2637IMS-LZ10#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.1 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2637IMS-LZ10#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2637IMS-LZ10#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2637IMS-LZ10#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the digital interface (e.g. SPI or I2C).
  • The maximum operating temperature range for the LTC2637IMS-LZ10#PBF is -40°C to 125°C. The device's performance may be affected by temperature, with increased temperature potentially causing a decrease in accuracy and an increase in power consumption.
  • The LTC2637IMS-LZ10#PBF does not require calibration, as it is a digitally calibrated device. However, it's recommended to follow the datasheet's guidelines for setting the device's internal registers and configuring the output voltage.
  • The LTC2637IMS-LZ10#PBF is designed to meet EMI and EMC standards, but it's still important to follow good design practices to minimize electromagnetic interference. This includes using a solid ground plane, shielding, and filtering, as well as following the datasheet's guidelines for layout and placement.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC2637IMS-LZ10#PBF Overview

Use the download button to access the LTC2637IMS-LZ10#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
