LTC2644CMS-L10#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2644CMS-L10#PBF - Digital to Analogue Converter, 10 bit, 25 kSPS, 2.7V to 5.5V, MSOP, 12 Pins

Download LTC2644CMS-L10#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

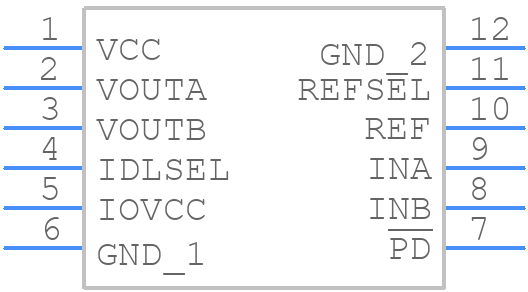

LTC2644CMS-L10#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2644CMS-L10#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC2644CMS-L10#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC2644CMS-L10#PBF Details

  • Manufacturer Part Number:

    LTC2644CMS-L10#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.097656%

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7.4 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2644CMS-L10#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2644CMS-L10#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2644CMS-L10#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the analog input voltage, and then the digital input signals.
  • The maximum clock frequency that can be used with the LTC2644CMS-L10#PBF is 50MHz. The clock signal requirements involve using a clock signal with a frequency accuracy of ±100ppm, a clock rise and fall time of <10ns, and a clock amplitude of 2.5V to 5V.
  • The LTC2644CMS-L10#PBF can be configured for different output voltage ranges by selecting the appropriate resistor values for the feedback network. The output voltage accuracy is ±0.5% over the entire output voltage range, and the output voltage stability is ±0.1% over the entire output voltage range.
  • The thermal management and heat dissipation requirements for the LTC2644CMS-L10#PBF involve using a heat sink or a thermal pad to dissipate heat. The junction temperature can be calculated using the thermal resistance (RθJA) and the power dissipation (PD) of the device, according to the formula: TJ = TA + (RθJA x PD).
