LTC2644CMS-L8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2644CMS-L8#PBF - DAC, 8BIT, 100KSPS, MSOP-12

Download LTC2644CMS-L8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

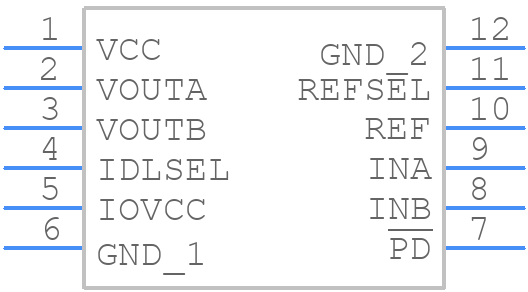

LTC2644CMS-L8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2644CMS-L8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC2644CMS-L8#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC2644CMS-L8#PBF Details

  • Manufacturer Part Number:

    LTC2644CMS-L8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.19531%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2644CMS-L8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2644CMS-L8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2644CMS-L8#PBF requires a single 3.3V or 5V power supply, and it is recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the device in the following order: VCC, then AVCC, and finally the digital inputs.
  • The LTC2644CMS-L8#PBF has a maximum junction temperature of 150°C, and it is recommended to keep the device temperature below 125°C for optimal performance. To ensure proper heat dissipation, it is recommended to use a heat sink or a thermal pad, and to keep the device away from other heat sources.
  • The LTC2644CMS-L8#PBF can be programmed using a serial interface, and it requires a 3.3V or 5V logic level. The programming requirements involve sending a series of commands and data to the device using a serial interface, and it is recommended to use a programming adapter or a development board to simplify the programming process.
  • The LTC2644CMS-L8#PBF is designed to meet the EMI and RFI requirements of various regulatory agencies, including the FCC and the CE. To ensure compliance, it is recommended to use a shielded enclosure, to keep the device away from other sources of EMI, and to use EMI filters or shielding on the PCB.
