LTC2644HMS-L10#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Dual 10-bit PWM to VOUT DACs with 10ppm/C Reference

Download LTC2644HMS-L10#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

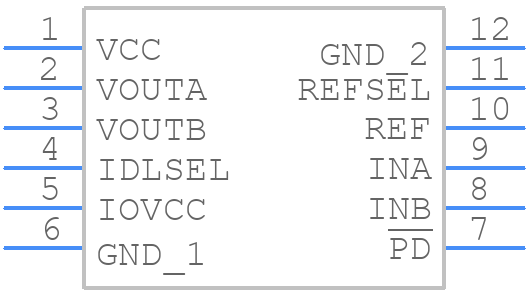

LTC2644HMS-L10#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2644HMS-L10#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP_1
click to zoom
3D Models
LTC2644HMS-L10#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP_1
click to zoom

LTC2644HMS-L10#PBF Details

  • Manufacturer Part Number:

    LTC2644HMS-L10#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.097656%

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7.4 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2644HMS-L10#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2644HMS-L10#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • To ensure the LTC2644HMS-L10#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation.
  • Potential sources of error in the LTC2644HMS-L10#PBF include noise, temperature drift, and non-linearity. To mitigate these errors, it's recommended to use proper filtering, shielding, and grounding techniques, as well as to calibrate the device regularly.
  • Yes, the LTC2644HMS-L10#PBF is suitable for use in high-reliability or safety-critical applications, but it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
  • To troubleshoot issues with the LTC2644HMS-L10#PBF, it's recommended to check the device's input and output voltages, ensure proper power supply decoupling, and verify that the device is operating within its specified temperature range. Additionally, using a oscilloscope or other debugging tools can help identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2644HMS-L10#PBF Overview

Use the download button to access the LTC2644HMS-L10#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
