LTC2644HMS-L8#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Dual 8-bit PWM to VOUT DACs with 10ppm/C Reference

Download LTC2644HMS-L8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

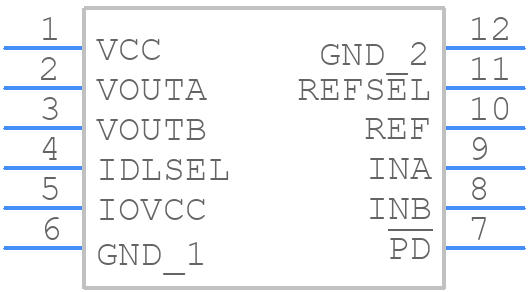

LTC2644HMS-L8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2644HMS-L8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC2644HMS-L8#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC2644HMS-L8#PBF Details

  • Manufacturer Part Number:

    LTC2644HMS-L8#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.19531%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2644HMS-L8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2644HMS-L8#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2644HMS-L8#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the analog input voltage, and then the digital input signals.
  • The maximum clock frequency that can be used with the LTC2644HMS-L8#PBF is 50MHz, and the clock signal requirements involve using a clock signal with a minimum amplitude of 2.5V and a maximum amplitude of VCC + 0.3V, with a rise and fall time of less than 5ns.
  • The LTC2644HMS-L8#PBF can be programmed using a serial interface, and the programming requirements involve using a 3-wire serial interface with a clock frequency of up to 50MHz, and a data transfer rate of up to 50Mbps. The device also requires a programming voltage of 2.5V to 5.5V.
  • The thermal management strategy for the LTC2644HMS-L8#PBF involves using a heat sink or a thermal pad to dissipate heat, and ensuring good airflow around the device. It's also recommended to keep the device away from high-temperature sources, and to use a thermal interface material to improve heat transfer.
