LTC2644IMS-L8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2644IMS-L8#PBF - Digital to Analogue Converter, 8 bit, 100 kSPS, 2.7V to 5.5V, MSOP, 12 Pins

Download LTC2644IMS-L8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

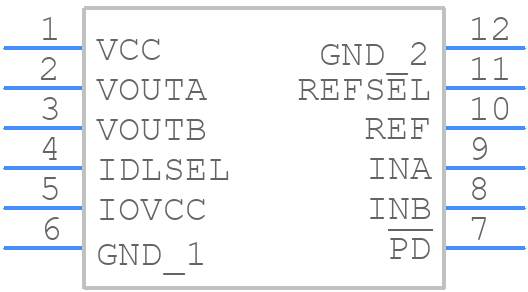

Symbol
LTC2644IMS-L8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2644IMS-L8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom
3D Models
LTC2644IMS-L8#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 12-Lead Plastic MSOP
click to zoom

LTC2644IMS-L8#PBF Details

  • Manufacturer Part Number:

    LTC2644IMS-L8#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.19531%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2644IMS-L8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2644IMS-L8#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2644IMS-L8#PBF requires a single 2.7V to 5.5V power supply. It is recommended to use a low-noise power supply and to ensure that the power supply is stable and well-regulated. The power sequencing requirements are not critical, but it is recommended to power up the device slowly to prevent damage.
  • The maximum clock frequency that can be used with the LTC2644IMS-L8#PBF is 50MHz. However, the actual clock frequency that can be used may be limited by the specific application and the quality of the clock signal.
  • The LTC2644IMS-L8#PBF can be programmed using a serial interface such as SPI or I2C. The device can be programmed using a variety of programming interfaces, including a dedicated programmer, a microcontroller, or a PC-based programming tool.
  • The typical settling time for the LTC2644IMS-L8#PBF is around 10us to 20us, depending on the specific configuration and output voltage. The settling time can affect the overall system performance by introducing latency and affecting the accuracy of the output voltage.
