LTC2645CMS-L8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2645CMS-L8#PBF - Digital to Analogue Converter, 8 bit, 100 kSPS, 2.7V to 5.5V, MSOP, 16 Pins

Download LTC2645CMS-L8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

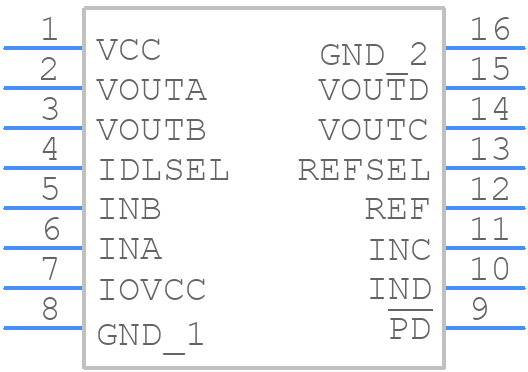

Symbol
LTC2645CMS-L8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2645CMS-L8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom
3D Models
LTC2645CMS-L8#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom

LTC2645CMS-L8#PBF Details

  • Manufacturer Part Number:

    LTC2645CMS-L8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Analog Output Voltage-Min:

    1.71 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC2645CMS-L8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2645CMS-L8#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2645CMS-L8#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the analog input voltage, and then the digital input signals.
  • The maximum clock frequency that can be used with the LTC2645CMS-L8#PBF is 50MHz. The clock signal requirements involve using a clock signal with a frequency accuracy of ±100ppm, a clock rise and fall time of <10ns, and a clock amplitude of 2.5V to 5V.
  • The LTC2645CMS-L8#PBF can be configured for different output voltage ranges by using external resistors to set the output voltage. The output voltage accuracy is ±1.5% over the entire output voltage range, and the output voltage stability is ±0.5% over the entire output voltage range.
  • The thermal management strategy for the LTC2645CMS-L8#PBF involves using a heat sink or a thermal pad to dissipate heat. The thermal specifications include a junction temperature range of -40°C to 125°C, a thermal resistance of 30°C/W, and a maximum power dissipation of 1.5W.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2645CMS-L8#PBF Overview

Use the download button to access the LTC2645CMS-L8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
