LTC2645IMS-L8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2645IMS-L8#PBF - Digital to Analogue Converter, 8 bit, 100 kSPS, 2.7V to 5.5V, MSOP, 16 Pins

Download LTC2645IMS-L8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

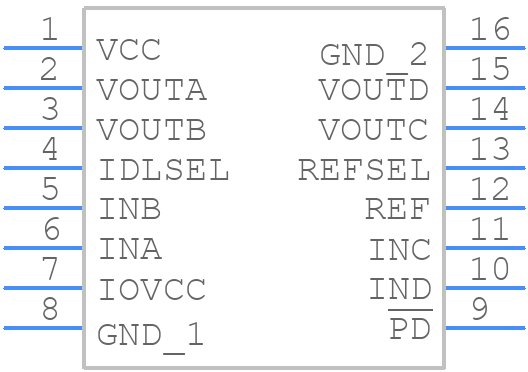

LTC2645IMS-L8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2645IMS-L8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead MS Package
click to zoom
3D Models
LTC2645IMS-L8#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead MS Package
click to zoom

LTC2645IMS-L8#PBF Details

  • Manufacturer Part Number:

    LTC2645IMS-L8#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

LTC2645IMS-L8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2645IMS-L8#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • The LTC2645IMS-L8#PBF requires a single 2.7V to 5.5V power supply. It is recommended to use a low-noise power supply and to ensure that the power supply is stable before applying the input voltage. The power sequencing requirements are not critical, but it is recommended to power up the device in the following order: VCC, then VIN.
  • The maximum output current capability of the LTC2645IMS-L8#PBF is 10mA per channel. Exceeding this current limit can affect the device's performance, including increased power consumption, reduced accuracy, and potential damage to the device.
  • The LTC2645IMS-L8#PBF does not require calibration. The device is factory-calibrated and the calibration data is stored in the device's internal memory. However, it is recommended to perform a system-level calibration to ensure the overall system accuracy and performance.
  • The LTC2645IMS-L8#PBF has a recommended operating temperature range of -40°C to 125°C. To ensure the device operates within this range, it is recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid exposing the device to high temperatures during soldering or rework.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2645IMS-L8#PBF Overview

Use the download button to access the LTC2645IMS-L8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
