LTC2655IGN-L12#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 12-Bit I2C Quad DAC (1.25V Reference)

Download LTC2655IGN-L12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

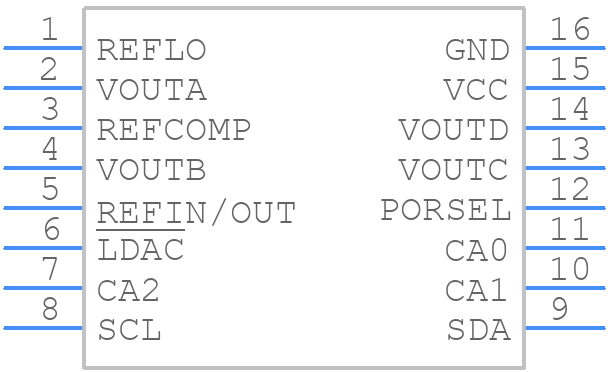

LTC2655IGN-L12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2655IGN-L12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC2655IGN-L12#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC2655IGN-L12#PBF Details

  • Manufacturer Part Number:

    LTC2655IGN-L12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    2.4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LTC2655IGN-L12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2655IGN-L12#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a separate ground plane to minimize noise and ensure optimal performance.
  • The LTC2655IGN-L12#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the input voltage (VIN), and then the output voltage (VOUT).
  • The maximum operating temperature range for the LTC2655IGN-L12#PBF is -40°C to 125°C. Temperature can affect the device's performance, particularly its accuracy and linearity. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • The LTC2655IGN-L12#PBF can be programmed using a serial interface, such as SPI or I2C, to configure the device's settings, including the output voltage, output current, and fault detection. The device also has a dedicated pin for programming the output voltage.
  • The LTC2655IGN-L12#PBF is available in a 16-lead QFN package, which provides a compact and low-profile solution for space-constrained applications. The pinout is optimized for ease of use and minimizes the number of external components required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2655IGN-L12#PBF Overview

Use the download button to access the LTC2655IGN-L12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
