LTC2666CUH-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2666CUH-16#PBF - Digital to Analogue Converter, SoftSpan, 16 bit, SPI, 4.5V to 5.5V, ± 4.75V to ± 15.75V, QFN

Download LTC2666CUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

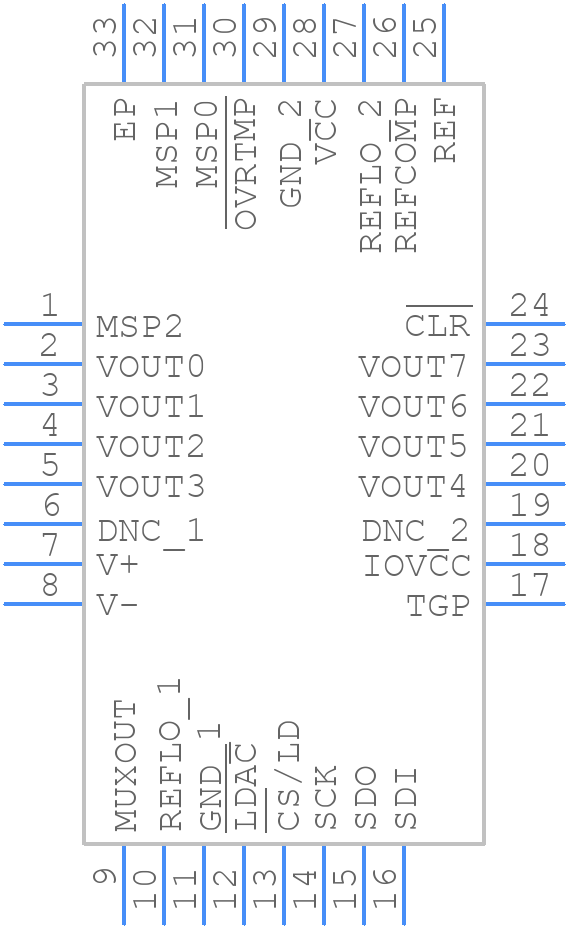

LTC2666CUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2666CUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH (32-Lead QFN)
click to zoom

LTC2666CUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2666CUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.1221%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2666CUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2666CUH-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • The LTC2666CUH-16#PBF requires a single 3.3V or 5V power supply, and it is recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the VCC pin before the VIN pin, and ensuring that the VCC pin is stable before applying the VIN pin.
  • The maximum output current capability of the LTC2666CUH-16#PBF is 20mA per channel. The device's thermal performance is affected by the output current, and it is recommended to keep the junction temperature below 125°C to ensure reliable operation. The device's thermal performance can be improved by using a heat sink or a thermal pad.
  • The LTC2666CUH-16#PBF can be configured for different output voltage ranges by adjusting the external resistors and capacitors. The device can be configured for output voltages ranging from 0.6V to 5.5V, but the output voltage range is limited by the input voltage and the internal voltage reference.
  • The LTC2666CUH-16#PBF is designed to meet the EMI and EMC requirements of most applications. However, it is recommended to use proper PCB layout and shielding techniques, such as using a shielded enclosure and keeping the device away from high-frequency sources.
