LTC2668HUJ-16#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 16-Channel, 16-Bit, 10V VOUT SoftSpan DACs with 10ppm/ C Max Reference

Download LTC2668HUJ-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

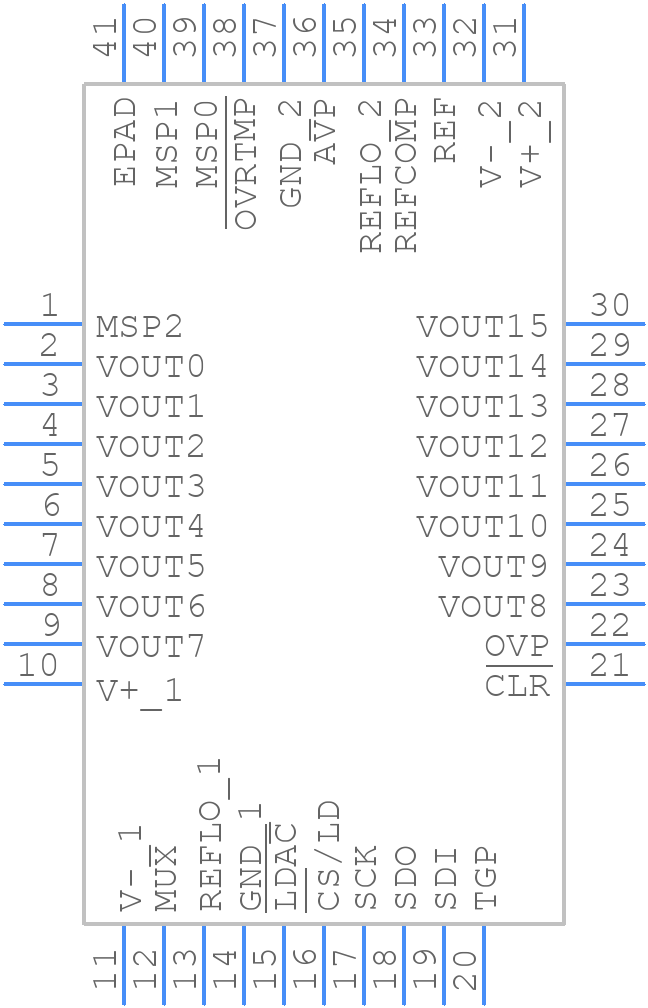

LTC2668HUJ-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2668HUJ-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame
click to zoom
3D Models
LTC2668HUJ-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame
click to zoom

LTC2668HUJ-16#PBF Details

  • Manufacturer Part Number:

    LTC2668HUJ-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20.5 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2668HUJ-16#PBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the power and ground connections.
  • The LTC2668HUJ-16#PBF requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device in the following order: VCC, then AVCC, and finally DVCC.
  • The LTC2668HUJ-16#PBF can support clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and layout.
  • The LTC2668HUJ-16#PBF can be configured for different voltage ranges by adjusting the external resistors and capacitors. However, the device has limitations on the minimum and maximum voltage ranges, and the output voltage must be within the specified range of 0.6V to 5.5V.
  • The LTC2668HUJ-16#PBF has a maximum junction temperature of 150°C. Ensure good airflow and thermal conduction to keep the device temperature within the specified range. A thermal pad or heat sink may be required for high-power applications.
