LTC2672HUH-12#PBF - Analog Devices

Description: Five-Channel, Current Output DAC with Internal Reference and SPI

Download LTC2672HUH-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

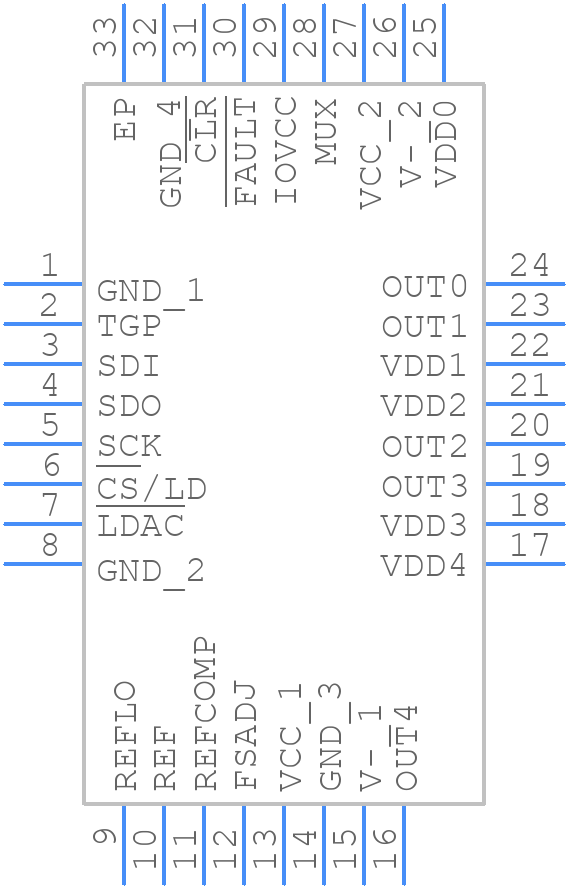

Symbol
LTC2672HUH-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2672HUH-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC2672HUH-12#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC2672HUH-12#PBF Details

  • Manufacturer Part Number:

    LTC2672HUH-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -3.3 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    3.5 µs

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2672HUH-12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2672HUH-12#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-frequency noise sources and to use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The selection of output capacitors for the LTC2672HUH-12#PBF depends on the specific application requirements, such as the output voltage, current, and ripple. In general, it is recommended to use low-ESR capacitors with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. The capacitor should also be able to handle the maximum output current and ripple current of the device.
  • The maximum ambient temperature range for the LTC2672HUH-12#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at temperatures above 85°C, and it is recommended to derate the device's output current and voltage accordingly.
  • To troubleshoot issues with the LTC2672HUH-12#PBF, it is recommended to follow a systematic approach, starting with a visual inspection of the board and device, followed by measurements of the input and output voltages, currents, and frequencies. The device's datasheet and application notes should be consulted for guidance on troubleshooting specific issues, and it may be necessary to use specialized equipment, such as an oscilloscope or spectrum analyzer, to diagnose the problem.
  • The LTC2672HUH-12#PBF is a high-reliability device that is suitable for use in safety-critical applications, such as automotive, industrial, and medical devices. However, it is recommended to follow the device's datasheet and application notes, as well as relevant industry standards and guidelines, to ensure that the device is used in a way that meets the specific requirements of the application.
