LTC2672HUH-16#PBF - Analog Devices

Description: 16 Bit Digital to Analog Converter 5 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) -40°C to +125°C

Download LTC2672HUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

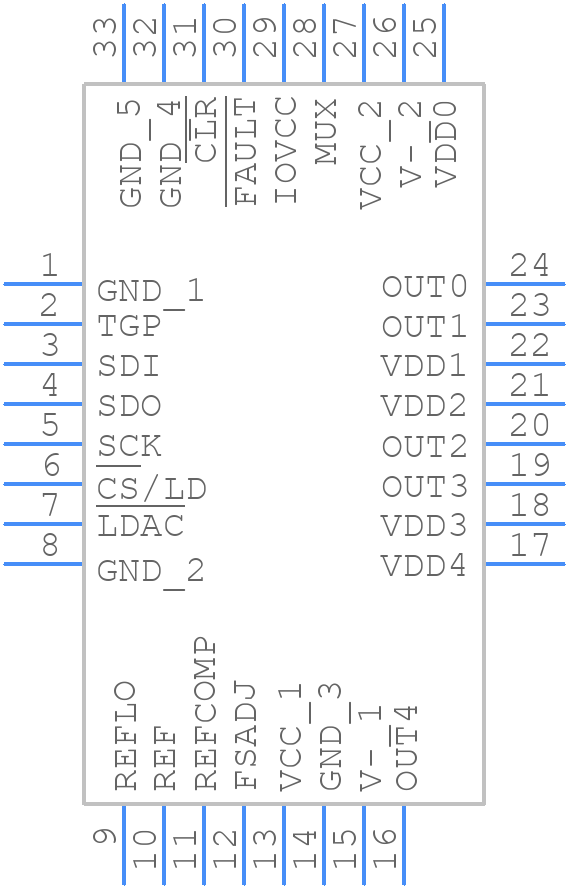

LTC2672HUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2672HUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC2672HUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC2672HUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2672HUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    DAC 16BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -3.3 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    200 µs

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2672HUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2672HUH-16#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-frequency noise sources and to use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The selection of output capacitors for the LTC2672HUH-16#PBF depends on the desired output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 2x the output voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple and ensure stability.
  • The maximum input voltage that the LTC2672HUH-16#PBF can handle is 16V. Exceeding this voltage can cause damage to the device. It is recommended to use input voltage limiting circuitry or a voltage regulator to ensure that the input voltage remains within the specified range.
  • The LTC2672HUH-16#PBF can be configured for a specific output voltage by connecting a resistive divider network between the output pin and the ground pin. The resistive divider network sets the output voltage based on the ratio of the resistors. The datasheet provides a formula for calculating the required resistor values for a given output voltage.
  • The thermal derating of the LTC2672HUH-16#PBF refers to the reduction in the device's maximum output current and power dissipation as the junction temperature increases. The datasheet provides a thermal derating curve that shows the maximum output current and power dissipation at different junction temperatures. It is essential to ensure that the device operates within the specified thermal limits to prevent overheating and ensure reliable operation.
