LTC2672IUH-12#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 5ch 300mA 12Bit CurrentSourceOut DAC

Download LTC2672IUH-12#PBF Model

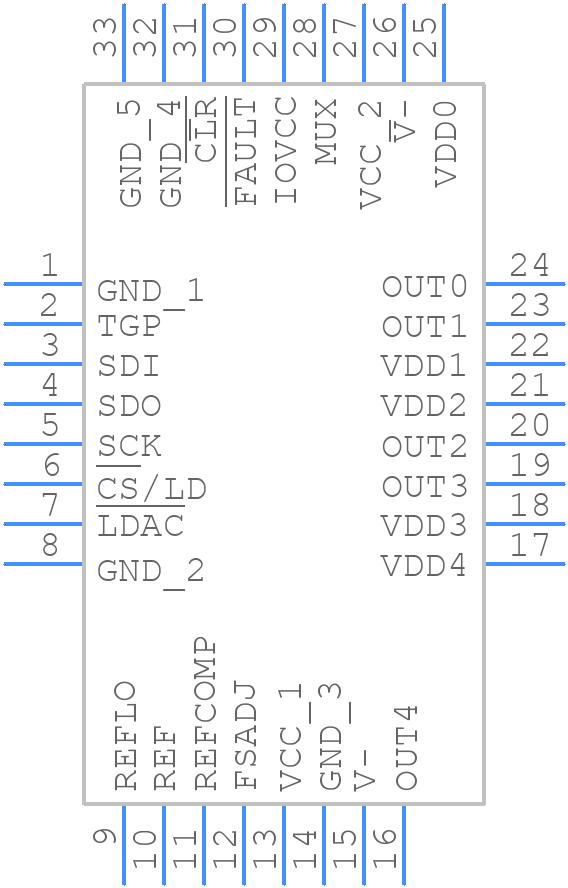

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2672IUH-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mm6
click to zoom

LTC2672IUH-12#PBF Details

  • Manufacturer Part Number:

    LTC2672IUH-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -3.3 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    3.5 µs

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2672IUH-12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2672IUH-12#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-frequency noise sources and to use a shielded enclosure to reduce electromagnetic interference.
  • To ensure the LTC2672IUH-12#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within its specified junction temperature range of -40°C to 125°C.
  • The recommended input voltage range for the LTC2672IUH-12#PBF is 2.7V to 5.5V. The input voltage affects the output voltage, as the device is a voltage regulator. The output voltage is regulated to 12V, with a tolerance of ±2% over the specified input voltage range.
  • The output current capability of the LTC2672IUH-12#PBF can be calculated based on the device's power dissipation and thermal resistance. The maximum output current is typically limited by the device's power dissipation, which is specified as 1.5W. Using the thermal resistance of the device, the maximum output current can be calculated using the formula: Iout(max) = Pd(max) / (Vin - Vout), where Pd(max) is the maximum power dissipation, Vin is the input voltage, and Vout is the output voltage.
  • When selecting the input and output capacitors for the LTC2672IUH-12#PBF, key considerations include the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. The input capacitor should have a low ESR and a capacitance value of at least 1uF, while the output capacitor should have a low ESR and a capacitance value of at least 2.2uF. The voltage rating of the capacitors should be greater than the maximum input voltage and output voltage, respectively.
