LTC2672IUH-16#PBF - Analog Devices

Description: 16 Bit Digital to Analog Converter 5 32-QFN (5x5) ,2.85V ~ 5.5V ,1.7V ~ 5.5V ,-40°C ~ 85°C

Download LTC2672IUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

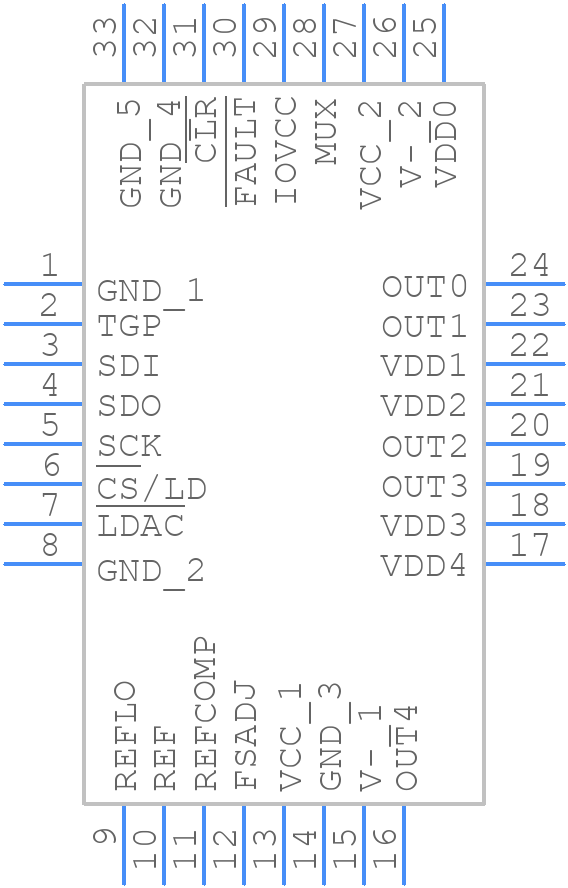

LTC2672IUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2672IUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm x 5mm)_2026-1.12
click to zoom
3D Models
LTC2672IUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm x 5mm)_2026-1.12
click to zoom

LTC2672IUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2672IUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    DAC 16BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -3.3 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    200 µs

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2672IUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2672IUH-16#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-frequency noise sources and to use a shielded enclosure to reduce electromagnetic interference.
  • To ensure the LTC2672IUH-16#PBF is operating within its specified temperature range, it is recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • The recommended input voltage range for the LTC2672IUH-16#PBF is 2.7V to 5.5V. The input voltage affects the output voltage by determining the maximum output voltage that can be achieved. The output voltage is limited to the input voltage minus the dropout voltage, which is typically around 0.5V.
  • The LTC2672IUH-16#PBF can be programmed to output a specific voltage by connecting the VOUT pin to a resistive divider network, which sets the output voltage based on the ratio of the resistors. The output voltage can be calculated using the formula: VOUT = (R1 / R2) * (VREF - VDROP), where VREF is the internal reference voltage and VDROP is the dropout voltage.
  • The maximum output current capability of the LTC2672IUH-16#PBF is 1.5A. The output current affects the device's power dissipation, which is calculated as PDISS = (VIN - VOUT) * IOUT. To minimize power dissipation, it is recommended to use a low-input voltage and to ensure good heat sinking.
