LTC2688HUJ-16#PBF - Analog Devices

Description: 16-Channel, 12-/16-Bit Voltage Output SoftSpan DAC

Download LTC2688HUJ-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

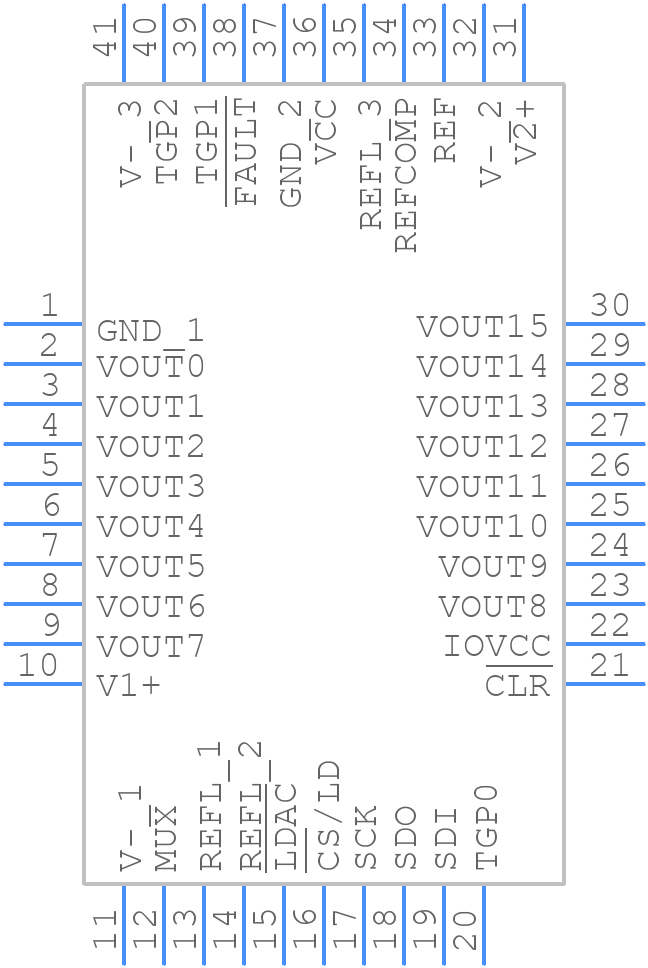

Symbol
LTC2688HUJ-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2688HUJ-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC2688HUJ-16#PBF_2026
click to zoom
3D Models
LTC2688HUJ-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC2688HUJ-16#PBF_2026
click to zoom

LTC2688HUJ-16#PBF Details

  • Manufacturer Part Number:

    LTC2688HUJ-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XBCS-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0000457%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWBCS

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    28 µs

  • Settling Time-Nom (tstl):

    28 µs

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2688HUJ-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2688HUJ-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to reduce noise and crosstalk.
  • To ensure proper calibration and configuration, follow the calibration procedure outlined in the datasheet, and use the provided software tools, such as the LTC2688 demo software, to configure the device. Additionally, consult the application notes and user guides provided by Analog Devices for specific guidance on calibration and configuration.
  • The LTC2688HUJ-16#PBF has a maximum junction temperature of 150°C. To ensure it operates within the recommended temperature range, provide adequate heat sinking, use a thermally conductive PCB material, and avoid blocking airflow around the device. Additionally, consider using thermal interface materials and heat sinks to reduce thermal resistance.
  • To troubleshoot common issues with the LTC2688HUJ-16#PBF, start by verifying the power supply and clock signals, checking for proper device configuration and calibration, and ensuring the PCB layout and routing meet the recommended guidelines. Consult the datasheet and application notes for specific troubleshooting guidance, and use tools such as oscilloscopes and logic analyzers to debug the issue.
  • To ensure the LTC2688HUJ-16#PBF meets the required electromagnetic compatibility standards, follow proper PCB layout and routing guidelines, use shielding and filtering techniques, and consider using EMI-absorbing materials. Additionally, consult the datasheet and application notes for specific guidance on EMI and RFI considerations, and perform electromagnetic compatibility testing to ensure compliance with relevant standards.
