LTC2704IGW-12#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2704IGW-12#PBF - Digital to Analogue Converter, Quad, 12 bit, 3 Wire, Serial, SPI, 4.5V to 16.5V, SSOP, 44 Pins

Download LTC2704IGW-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

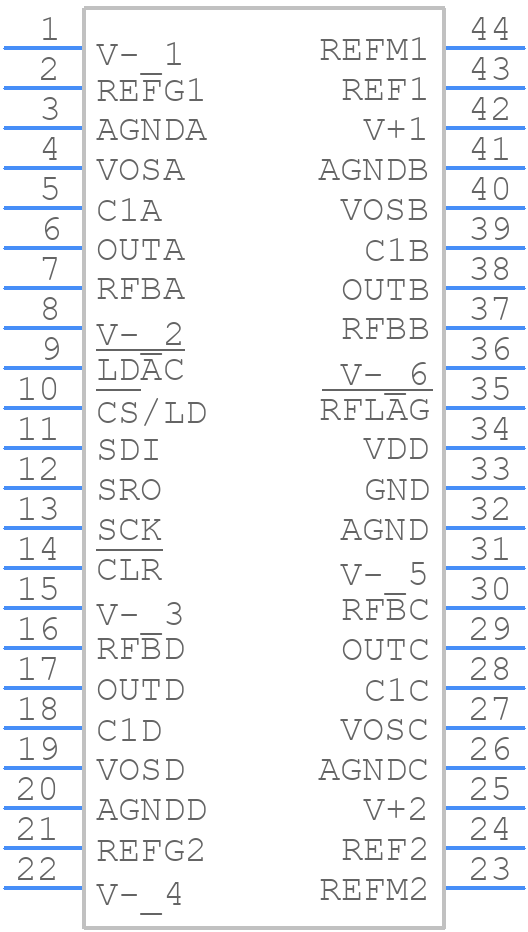

LTC2704IGW-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

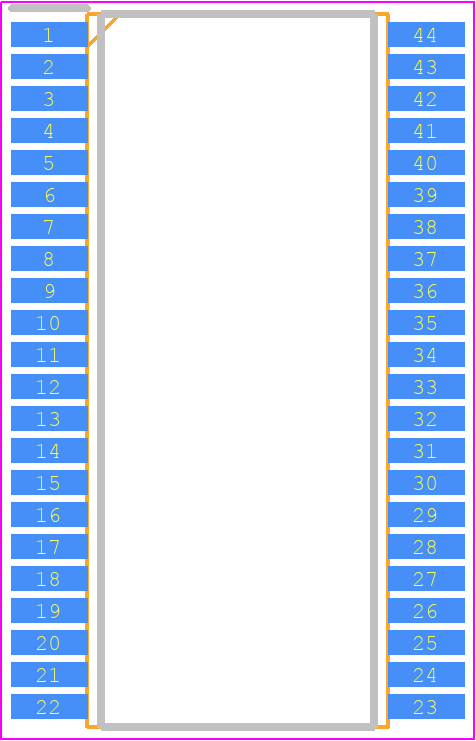

LTC2704IGW-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch)-1
click to zoom
3D Models
LTC2704IGW-12#PBF - Analog Devices - 3D model - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch)-1
click to zoom

LTC2704IGW-12#PBF Details

  • Manufacturer Part Number:

    LTC2704IGW-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1642 (GW44)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    17.83 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP44,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC2704IGW-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2704IGW-12 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the IC to the capacitors and resistors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling of the LTC2704IGW-12, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and add a 1uF ceramic capacitor between the VCC and AVCC pins. Additionally, use a 10kΩ resistor between the VCC and EN pins to ensure proper startup.
  • The LTC2704IGW-12 supports clock frequencies up to 50MHz, but the maximum frequency may vary depending on the specific application and layout. It's recommended to consult the datasheet and application notes for specific guidance.
  • To configure the LTC2704IGW-12 for a specific voltage output, use the FB pin to set the output voltage. Connect a resistive divider from the output voltage to the FB pin, and adjust the resistor values to achieve the desired output voltage. Consult the datasheet for specific resistor values and equations.
  • The LTC2704IGW-12 has a thermal derating of 1.5°C/W. As the junction temperature increases, the maximum output current decreases. Consult the datasheet for specific thermal derating curves and maximum output current ratings at different temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2704IGW-12#PBF Overview

Use the download button to access the LTC2704IGW-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
