LTC2755IUP-14#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2755IUP-14#PBF - 14 BIT DAC, QUAD, PARALLEL, 64DFN

Download LTC2755IUP-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTC2755IUP-14#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

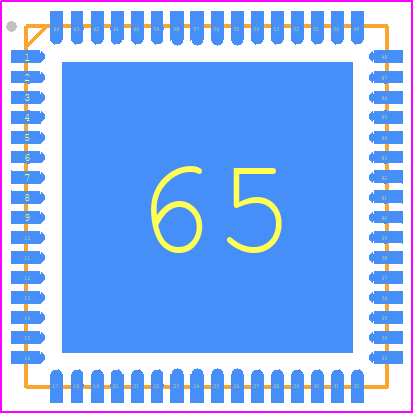

LTC2755IUP-14#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UP (64-Lead QFN)
click to zoom
3D Models
LTC2755IUP-14#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UP (64-Lead QFN)
click to zoom

LTC2755IUP-14#PBF Details

  • Manufacturer Part Number:

    LTC2755IUP-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    9 X 9 MM, LEAD FREE, PLASTIC, MO-220WNJR-5, QFN-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    05-08-1705

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

LTC2755IUP-14#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2755IUP-14#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure the LTC2755IUP-14#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. The device should be mounted on a PCB with a thermal pad connected to a heat sink or a metal core PCB. The ambient temperature should be kept within the specified range of -40°C to 125°C, and the device should not be exposed to extreme temperatures during storage or handling.
  • The LTC2755IUP-14#PBF requires proper input and output filtering to ensure optimal performance. A low-pass filter with a cutoff frequency of around 100 kHz to 1 MHz is recommended at the input stage to filter out high-frequency noise. At the output stage, a low-pass filter with a cutoff frequency of around 10 kHz to 100 kHz is recommended to filter out high-frequency noise and ensure a clean output signal.
  • To troubleshoot common issues with the LTC2755IUP-14#PBF, start by checking the PCB layout and ensuring that it follows the recommended layout and land pattern. Verify that the input and output stages are properly filtered, and that the device is operating within its specified temperature range. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
  • The recommended power-up sequence for the LTC2755IUP-14#PBF is to power up the VCC supply first, followed by the VIN supply. The power-down sequence should be reversed, with the VIN supply powered down first, followed by the VCC supply. This ensures that the device powers up and down safely and prevents any potential damage or latch-up.
