LTC2756AIG#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Serial 18-B SoftSpan IOUT DAC

Download LTC2756AIG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

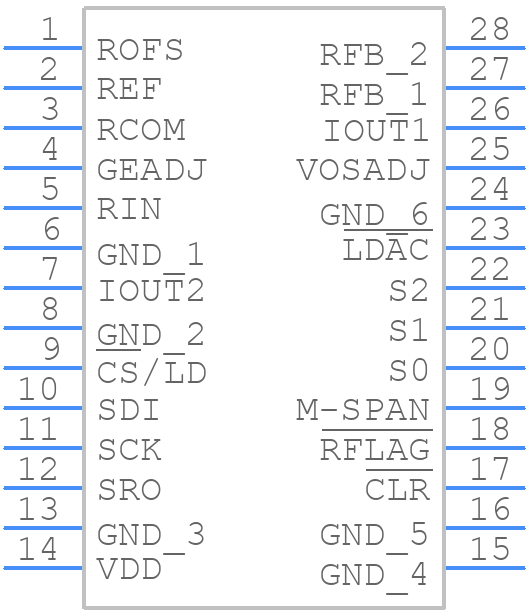

LTC2756AIG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2756AIG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC2756AIG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 28-Lead Plastic SSOP (5.3mm)
click to zoom

LTC2756AIG#PBF Details

  • Manufacturer Part Number:

    LTC2756AIG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1640 (G28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    2.1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC2756AIG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2756AIG#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2756AIG#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements involve powering the device after the analog power supply is stable, and ensuring that the digital power supply is powered up after the analog power supply.
  • The LTC2756AIG#PBF has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is soldered correctly and that the thermal pad is connected to a solid ground plane.
  • To troubleshoot common issues with the LTC2756AIG#PBF, start by checking the power supply voltage, ensuring that it's within the recommended range. Check the output voltage and current, and verify that the device is properly configured. If oscillations occur, check the PCB layout and ensure that the device is properly decoupled. If issues persist, consult the datasheet and application notes for further guidance.
  • The LTC2756AIG#PBF is designed to meet EMI and RFI regulatory requirements. To ensure compliance, follow proper PCB layout and design practices, use shielding and filtering as necessary, and ensure that the device is properly decoupled. Additionally, consult the datasheet and application notes for specific guidance on EMI and RFI considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2756AIG#PBF Overview

Use the download button to access the LTC2756AIG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters
