LTC2758ACLX#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2758ACLX#PBF - Digital to Analogue Converter, 18 bit, SPI, 2.7V to 5.5V, LQFP, 48 Pins

Download LTC2758ACLX#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

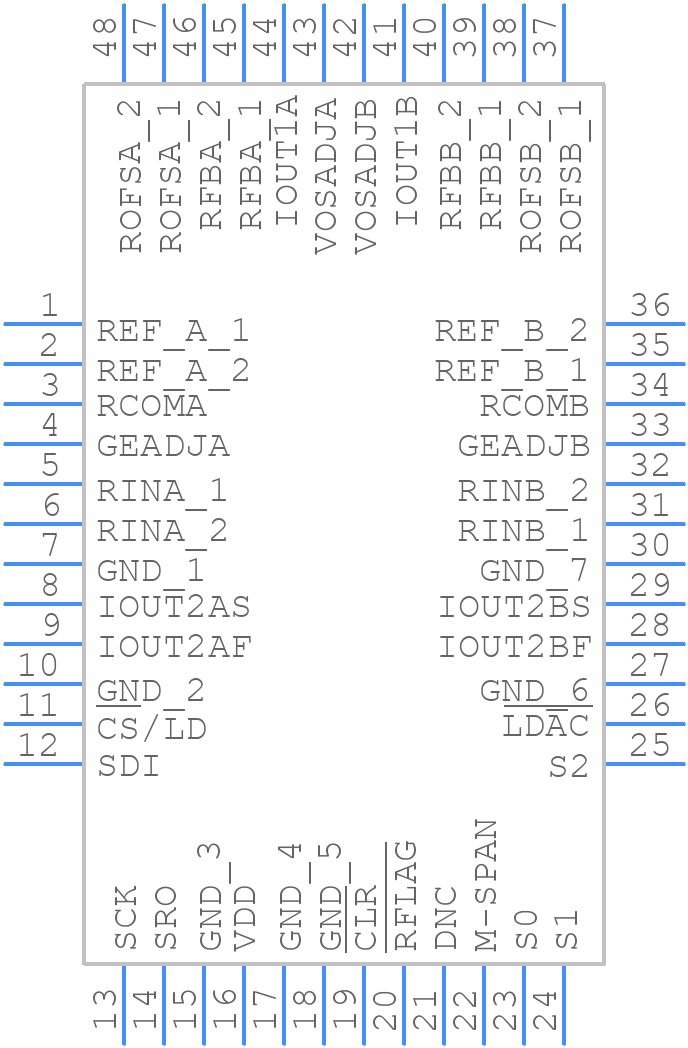

LTC2758ACLX#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2758ACLX#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead 7mm × 7mm Plastic LQFP
click to zoom
3D Models
LTC2758ACLX#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead 7mm × 7mm Plastic LQFP
click to zoom

LTC2758ACLX#PBF Details

  • Manufacturer Part Number:

    LTC2758ACLX#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MS-026, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Settling Time-Nom (tstl):

    2.1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2758ACLX#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2758ACLX involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended on the output.
  • The maximum input voltage that the LTC2758ACLX can handle is 15V. Exceeding this voltage may damage the IC.
  • The LTC2758ACLX is rated for operation up to 125°C. However, the IC's performance may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
  • To troubleshoot issues with the LTC2758ACLX, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the PCB layout and component values match the recommended values in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2758ACLX#PBF Overview

Use the download button to access the LTC2758ACLX#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters
