LTC2801IDE#TRPBF - Analog Devices

Description: RS-232 Interface IC 1.8V-5V 1D+1R 250kbps RS232 Transceiver

Download LTC2801IDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

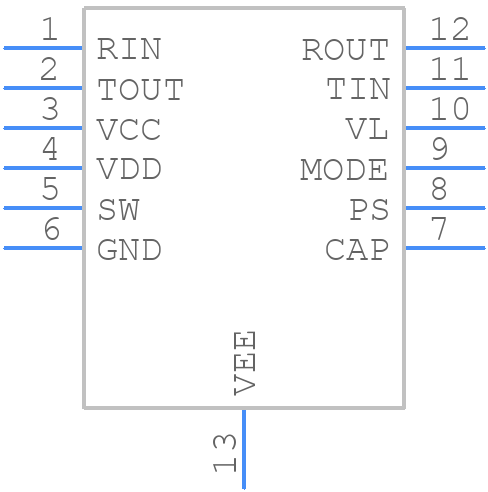

LTC2801IDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2801IDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN
click to zoom
3D Models
LTC2801IDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN
click to zoom

LTC2801IDE#TRPBF Details

  • Manufacturer Part Number:

    LTC2801IDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-F; TIA-232-F

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    400 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2000 ns

  • Width:

    3 mm

LTC2801IDE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2801IDE#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • The LTC2801IDE#TRPBF requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the input voltage has stabilized.
  • The LTC2801IDE#TRPBF can achieve data rates up to 100kbps. However, the maximum data rate is limited by the slew rate of the output drivers, the capacitance of the transmission line, and the noise margin of the receiver.
  • The LTC2801IDE#TRPBF has built-in fault detection capabilities, including overcurrent protection and thermal shutdown. To implement fault tolerance, it's recommended to use redundant systems, error correction codes, and checksums to detect and correct errors.
  • The LTC2801IDE#TRPBF has a maximum junction temperature of 150°C. To prevent overheating, it's recommended to provide adequate airflow, use a heat sink, and ensure good thermal conductivity between the device and the PCB.
