LTC2846CG#PBF - Analog Devices

Description: IC TXRX 3.3V MULTIPROTCOL 36SSOP

Download LTC2846CG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

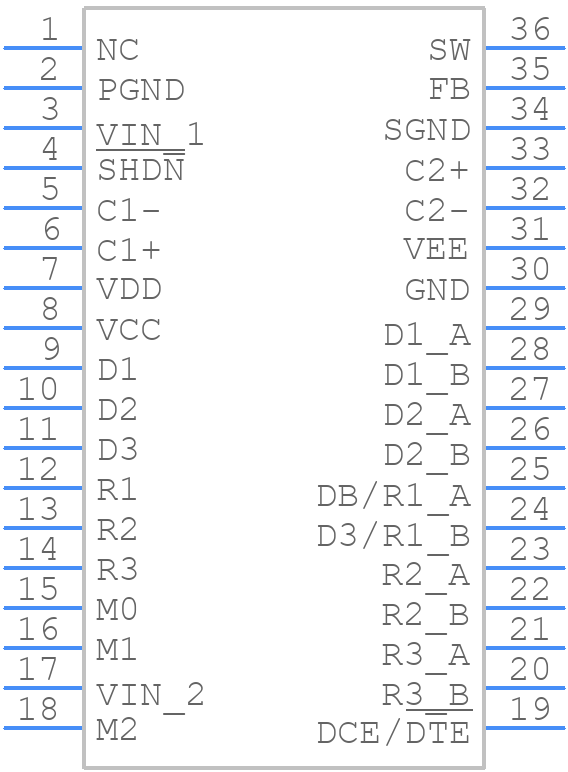

Symbol
LTC2846CG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2846CG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G (36-Lead SSOP)
click to zoom
3D Models
LTC2846CG#PBF - Analog Devices - 3D model - Small Outline Packages - G (36-Lead SSOP)
click to zoom

LTC2846CG#PBF Details

  • Manufacturer Part Number:

    LTC2846CG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.209 INCH, PLASTIC, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    3

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.10; V.11; V.28; V.35; V.36; X.21; EIA-422; EIA-423; EIA-449; EIA-530; EIA-530-A

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    300 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2500 ns

  • Width:

    5.3 mm

LTC2846CG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2846CG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LTC2846CG involves selecting the right values for the resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the output capacitor's ESR and the input capacitor's ESL when optimizing the compensation network.
  • The maximum input voltage that the LTC2846CG can handle is 15V. Exceeding this voltage can damage the IC. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed 15V.
  • To ensure the stability of the LTC2846CG, it's important to follow the recommended PCB layout guidelines, use the correct compensation network, and ensure that the input and output capacitors are of high quality and have low ESR and ESL. Additionally, it's recommended to simulate the design using a SPICE model and to test the design thoroughly before mass production.
  • The maximum output current that the LTC2846CG can deliver is 2A. Exceeding this current can cause the IC to overheat and may lead to damage. It's recommended to use a heat sink and to ensure good thermal management to prevent overheating.
