LTC2858HDD-1#PBF - Analog Devices

Description: 20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceiver

Download LTC2858HDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

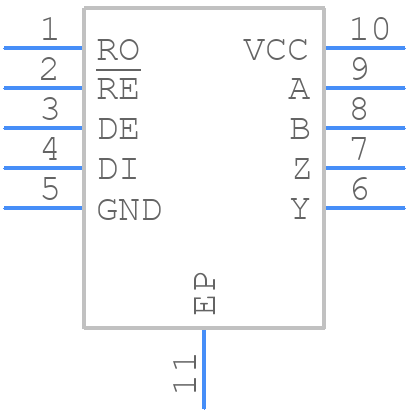

Symbol
LTC2858HDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2858HDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC2858HDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC2858HDD-1#PBF Details

  • Manufacturer Part Number:

    LTC2858HDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485-A; TIA-485-A; EIA-422

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    70 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2858HDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2858HDD-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure the reliability of the LTC2858HDD-1#PBF in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
  • Potential sources of noise and interference in the LTC2858HDD-1#PBF include digital switching noise, power supply noise, and electromagnetic interference. These can be mitigated by using a low-noise power supply, adding decoupling capacitors, and using shielding or filtering to reduce electromagnetic interference.
  • To troubleshoot issues with the LTC2858HDD-1#PBF, start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or ringing.
  • When using the LTC2858HDD-1#PBF in a system with multiple power domains, it's essential to ensure that the device is properly isolated from other power domains to prevent noise and interference. This can be achieved using isolation techniques such as optocouplers or transformers, and by following proper PCB layout and grounding practices.
