LTC2862IDD-2#PBF - Analog Devices

Description: Single Transmitter/Receiver RS-422/RS-485 Automotive 8-Pin DFN EP

Download LTC2862IDD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

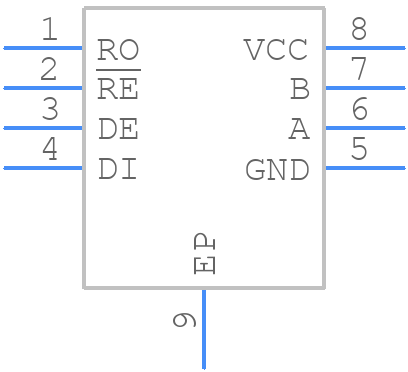

LTC2862IDD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2862IDD-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC2862IDD-2#PBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC2862IDD-2#PBF Details

  • Manufacturer Part Number:

    LTC2862IDD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3 mm

LTC2862IDD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2862IDD-2#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC2862IDD-2#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is within the recommended operating range.
  • The LTC2862IDD-2#PBF has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Additionally, ensure that the device is operated within the recommended operating temperature range.
  • To troubleshoot issues with the LTC2862IDD-2#PBF, start by checking the power supply and ensuring that it's within the recommended operating range. Check for proper PCB layout and ensure that the device is properly soldered. Common pitfalls to avoid include not following the recommended PCB layout, not using a low-noise power supply, and not ensuring proper power sequencing.
  • The LTC2862IDD-2#PBF is designed to meet the EMI and RFI requirements of various regulatory bodies. To ensure compliance, follow the recommended PCB layout, use a shielded enclosure, and ensure that the device is properly grounded. Additionally, ensure that the device is operated within the recommended frequency range.
