LTC2863CDD-1#PBF footprint, schematic symbol and 3D model by Analog Devices

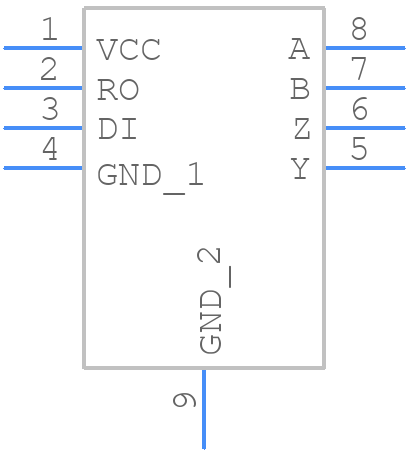

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC2863CDD-1#PBF
Part Number LTC2863CDD-1#PBF
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
Released Date Feb 12, 2021
Last Modified Date Jul 2, 2025 1:57 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC2863CDD-1#PBF Details

Manufacturer Part Number:
LTC2863CDD-1#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8
Pin Count:
8
Manufacturer Package Code:
05-08-1698
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.000005 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-422; EIA-485
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Out Swing-Min:
1.5 V
Output Low Current-Max:
0.003 A
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Receive Delay-Max:
65 ns
Receiver Number of Bits:
1
Seated Height-Max:
0.8 mm
Supply Current-Max:
1.3 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
50 ns
Width:
3 mm

LTC2863CDD-1#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC2863CDD-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the high-frequency pins.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range. Additionally, consider using a thermal interface material between the device and the heat sink.
Potential sources of noise and interference in the LTC2863CDD-1#PBF include digital switching noise, power supply noise, and electromagnetic interference. To mitigate these effects, use proper shielding, filtering, and decoupling techniques, such as using ferrite beads, capacitors, and shielding cans. Additionally, consider using a low-noise power supply and separating the analog and digital circuits.
To troubleshoot issues with the LTC2863CDD-1#PBF, start by verifying the power supply voltage, checking for proper connections and soldering, and ensuring that the device is operated within its recommended specifications. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the LTC2863CDD-1#PBF in a system with multiple power domains, it's essential to ensure that the device is properly isolated from the other power domains to prevent noise and interference. Use proper isolation techniques, such as using optocouplers or transformers, and consider using a separate power supply for the device. Additionally, ensure that the device is operated within its recommended specifications and that the power domains are properly synchronized.

Trust Checks

Community Provided

System Verified

Community Approved

LTC2863CDD-1#PBF Overview

Use the download button to access the LTC2863CDD-1#PBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
