LTC2864CDD-1#PBF - Analog Devices

Description: ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Download LTC2864CDD-1#PBF Model

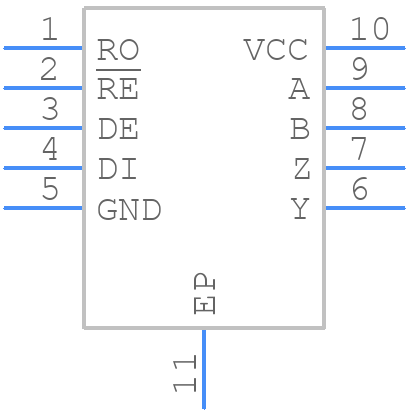

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2864CDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC2864CDD-1#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC2864CDD-1#PBF Details

  • Manufacturer Part Number:

    LTC2864CDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2864CDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864CDD-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and power-down of the LTC2864CDD-1#PBF, it's recommended to follow a controlled power-up sequence, where the voltage supply is ramped up slowly (typically 10ms to 100ms) to prevent inrush currents. Similarly, during power-down, the voltage supply should be ramped down slowly to prevent damage to the IC.
  • The LTC2864CDD-1#PBF has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the IC's junction temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing the power dissipation in the IC.
  • To troubleshoot issues with the LTC2864CDD-1#PBF, start by checking the power supply voltage, ensuring it's within the recommended range. Next, verify that the input and output signals are within the specified ranges. Use an oscilloscope to check for any unusual signal behavior or noise. Finally, consult the datasheet and application notes for guidance on specific troubleshooting techniques.
  • To minimize EMI and RFI issues with the LTC2864CDD-1#PBF, it's recommended to use a shielded enclosure, keep the IC and its associated components away from radiating sources, and use EMI filters or ferrite beads on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling between signals.
