LTC2864CDD-2#PBF - Analog Devices

Description: ±60V Fault Protected 3V to 5.5V 0°C ~ 70°C 10-DFN (3x3) RS485/RS422 Transceivers

Download LTC2864CDD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

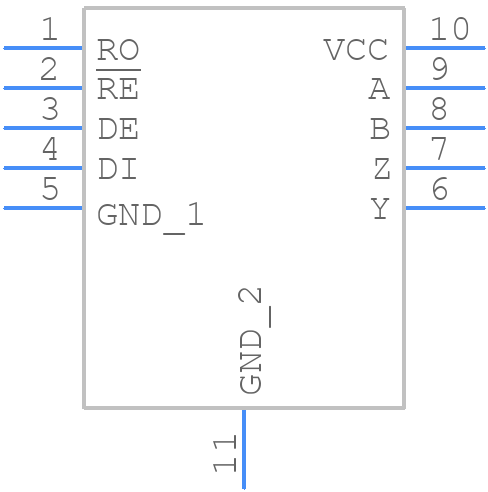

LTC2864CDD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2864CDD-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC2864CDD-2#PBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC2864CDD-2#PBF Details

  • Manufacturer Part Number:

    LTC2864CDD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3 mm

LTC2864CDD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864CDD-2#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and power-down of the LTC2864CDD-2#PBF, it's recommended to follow a controlled power-up sequence, where the voltage supplies are turned on in a specific order (e.g., VCC, then VDD, then VIN). Similarly, during power-down, the supplies should be turned off in the reverse order. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-up.
  • The maximum operating temperature range for the LTC2864CDD-2#PBF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot common issues with the LTC2864CDD-2#PBF, it's recommended to check the PCB layout, ensure proper decoupling and bypassing, and verify that the input and output capacitors are properly selected. Additionally, it's recommended to use a scope to measure the voltage and current waveforms, and to check for any signs of oscillation or instability.
  • Yes, the LTC2864CDD-2#PBF is suitable for use in high-reliability or high-availability applications, such as aerospace, defense, or medical devices. However, it's recommended to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-reliability components, and implementing redundant or fault-tolerant systems.
