LTC2864IDD-1#PBF - Analog Devices

Description: RS-422/RS-485 Interface IC 20Mbps 60V Fault Protected RS485 Transceiver (Full Duplex + Enables)

Download LTC2864IDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

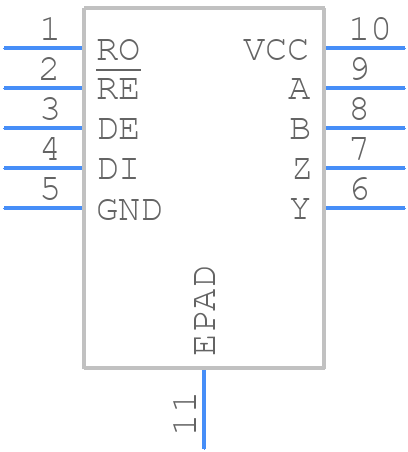

Symbol
LTC2864IDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2864IDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm x 3mm)_1
click to zoom
3D Models
LTC2864IDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm x 3mm)_1
click to zoom

LTC2864IDD-1#PBF Details

  • Manufacturer Part Number:

    LTC2864IDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2864IDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864IDD-1#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2864IDD-1#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements involve powering the device in the following order: VCC, then VDD, and finally the digital inputs. It's also recommended to add decoupling capacitors close to the device to filter out noise.
  • The LTC2864IDD-1#PBF has a maximum junction temperature of 150°C. To ensure proper heat dissipation, it's recommended to use a thermal pad or a heat sink, and to keep the device away from other heat sources. Additionally, it's recommended to use a PCB with a thermal relief pattern to improve heat dissipation.
  • To troubleshoot common issues with the LTC2864IDD-1#PBF, it's recommended to check the power supply voltage, the input voltage, and the output voltage. Also, check the communication protocol and the clock frequency. Use an oscilloscope to check the signal integrity and the timing. Additionally, check the PCB layout and the component placement to ensure that they meet the recommended layout guidelines.
  • The LTC2864IDD-1#PBF has built-in ESD protection diodes on all pins. However, it's still recommended to take precautions during handling and assembly to prevent ESD damage. Additionally, it's recommended to use a latch-up prevention circuit, such as a series resistor and a clamp diode, to prevent latch-up during power-on and power-off transitions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2864IDD-1#PBF Overview

Use the download button to access the LTC2864IDD-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Line Driver or Receivers
