LTC2864MPS-2#PBF - Analog Devices

Description: RS-422/RS-485 Interface IC 20Mbps 60V Fault Protected RS485 Transceiver (Full Duplex + Enables)

Download LTC2864MPS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

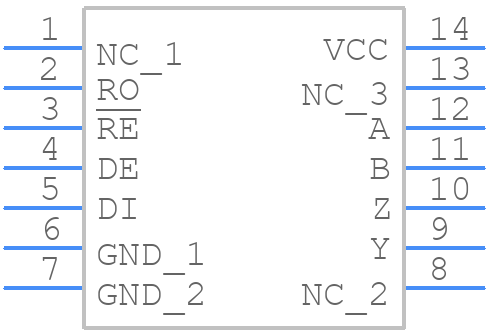

LTC2864MPS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2864MPS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC2864MPS-2#PBF - Analog Devices - 3D model - Small Outline Packages - 14-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC2864MPS-2#PBF Details

  • Manufacturer Part Number:

    LTC2864MPS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3.899 mm

LTC2864MPS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2864MPS-2 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and power-down of the LTC2864MPS-2, it's recommended to follow a controlled power-up sequence, where the voltage supplies are ramped up slowly and in a specific order. Additionally, the EN pin should be driven high after the voltage supplies have reached their nominal values, and driven low before the voltage supplies are turned off.
  • The maximum allowed capacitance on the VCC pin of the LTC2864MPS-2 is 10uF. Exceeding this value can cause the IC to oscillate or malfunction.
  • Yes, the LTC2864MPS-2 can be used in a hot-swap application, but it's recommended to add external circuitry to limit the inrush current and ensure a controlled power-up sequence. Additionally, the IC's overcurrent protection feature should be enabled to prevent damage during hot-swap events.
  • To troubleshoot issues with the LTC2864MPS-2, it's recommended to use a systematic approach, starting with a review of the PCB layout and the power-up sequence. Next, verify that the input voltage and current are within the specified limits, and check the output voltage and current for any anomalies. Finally, use a scope or logic analyzer to capture waveforms and debug the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2864MPS-2#PBF Overview

Use the download button to access the LTC2864MPS-2#PBF schematic symbol, PCB footprint, and 3D model.
