LTC2865CMSE#PBF - Analog Devices

Description: 60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Download LTC2865CMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

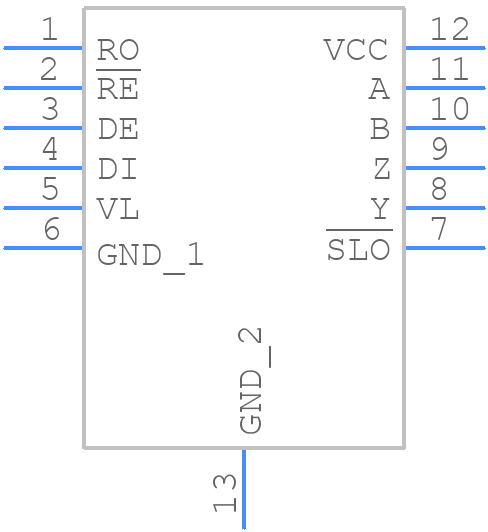

LTC2865CMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2865CMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC2865CMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC2865CMSE#PBF Details

  • Manufacturer Part Number:

    LTC2865CMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    65 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1500 ns

  • Width:

    3 mm

LTC2865CMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2865CMSE#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the digital signals away from the analog signals.
  • The LTC2865CMSE#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator. The power sequencing requirements are critical, and it's recommended to power up the device in the following order: VCC, then VREF, and finally the digital signals.
  • The LTC2865CMSE#PBF can achieve data rates of up to 100Mbps, but the actual data rate may be limited by the system's noise, signal integrity, and the quality of the transmission lines. Additionally, the device's internal clock frequency and the sampling rate of the ADC also impact the maximum achievable data rate.
  • To troubleshoot common issues with the LTC2865CMSE#PBF, start by checking the power supply and ensuring it's within the recommended range. Then, verify the clock frequency and sampling rate are correct, and check for any noise or signal integrity issues. Additionally, review the device's configuration and register settings to ensure they are correct.
  • The LTC2865CMSE#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device's temperature below 125°C for optimal performance. Ensure good thermal conductivity by using a heat sink or a thermal pad, and avoid blocking airflow around the device.
