LTC2875IS8#PBF - Analog Devices

Description: High Speed CAN Transceiver Protected from Overvoltage Line Faults to ±60V 3.3V or 5V Supply Voltage High Speed Operation Up to 4Mbps ±25kV ESD Interface Pins, ±8kV All Other Pins Variable Slew Rate Driver with Active Symmetry Control and SPLIT Pin for Low Electromagnetic Emission (EME) Extended Common Mode Range (±36V) Ideal Passive Behavior to CAN Bus with Supply Off Current Limited Drivers and Thermal Shutdown Power-Up/Down Glitch-Free Driver Outputs Micropower Shutdown Mode Transmit Data (TXD

Download LTC2875IS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

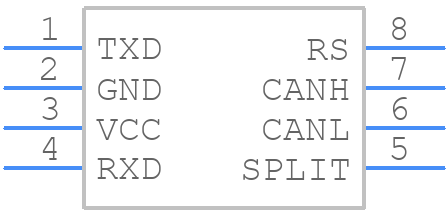

Symbol
LTC2875IS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2875IS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8(SOIC)
click to zoom
3D Models
LTC2875IS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8(SOIC)
click to zoom

LTC2875IS8#PBF Details

  • Manufacturer Part Number:

    LTC2875IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2875IS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2875IS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, keep the analog and digital signal traces separate and avoid crossing them over each other.
  • To ensure reliable communication, use a reliable serial communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line. Additionally, ensure that the microcontroller and the LTC2875IS8 are properly synchronized and that the data transmission is done in a burst mode.
  • The maximum cable length supported by the LTC2875IS8 depends on the specific application and the type of cable used. However, as a general guideline, the recommended cable length is up to 10 meters for a single-ended interface and up to 100 meters for a differential interface. It's recommended to use a shielded twisted-pair cable to minimize electromagnetic interference.
  • To ensure proper power-up and power-down sequencing, it's recommended to power up the LTC2875IS8 after the power supply has reached a stable voltage. During power-down, ensure that the power supply is turned off before the LTC2875IS8. Additionally, use a power-on reset circuit to ensure that the device is properly reset during power-up.
  • The LTC2875IS8 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Use a heat sink or a thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, avoid overheating the device during soldering or rework.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2875IS8#PBF Overview

Use the download button to access the LTC2875IS8#PBF schematic symbol, PCB footprint, and 3D model.
