LTC2876HMS8E#PBF - Analog Devices

Description: RS-485 Interface IC 60V Fault Protected PROFIBUS RS485 Transceiver

Download LTC2876HMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

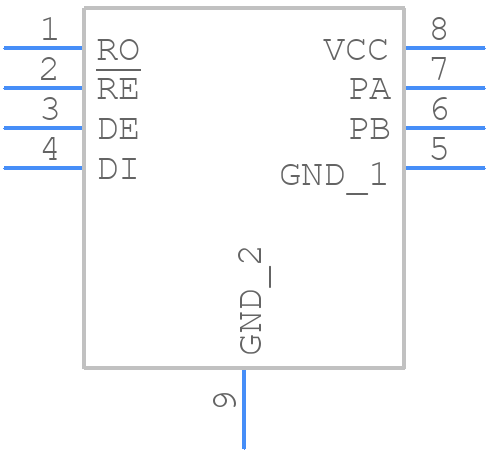

Symbol
LTC2876HMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2876HMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC DWG # 05-08-1660-2020-
click to zoom
3D Models
LTC2876HMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - LTC DWG # 05-08-1660-2020-
click to zoom

LTC2876HMS8E#PBF Details

  • Manufacturer Part Number:

    LTC2876HMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 3V SUPPLY

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Receive Delay-Max:

    70 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2876HMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2876HMS8E#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the LTC2876HMS8E#PBF in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • When using the LTC2876HMS8E#PBF in a system with multiple power domains, it's essential to ensure that the device is properly isolated from the other power domains to prevent noise and interference. This can be achieved through the use of isolation transformers, optocouplers, or other isolation techniques. Additionally, the device should be powered from a clean, low-noise power source.
  • To troubleshoot issues with the LTC2876HMS8E#PBF, start by verifying that the device is properly powered and configured. Check the voltage levels, clock frequencies, and signal integrity. Use oscilloscopes or logic analyzers to monitor the signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • When using the LTC2876HMS8E#PBF in a system with high-speed signals, it's essential to ensure that the device is properly terminated and that the signal integrity is maintained. This can be achieved through the use of proper termination resistors, impedance matching, and signal conditioning. Additionally, the device should be operated within its specified frequency range of up to 100 MHz.
