LTC2877IDD#PBF - Analog Devices

Description: ±60V Rugged PROFIBUS RS485 Transceivers

Download LTC2877IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

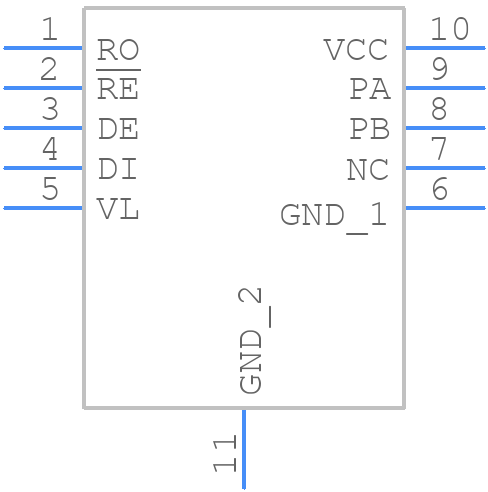

Symbol
LTC2877IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2877IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom
3D Models
LTC2877IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom

LTC2877IDD#PBF Details

  • Manufacturer Part Number:

    LTC2877IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 3V SUPPLY

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Receive Delay-Max:

    70 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    50 ns

  • Width:

    3 mm

LTC2877IDD#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC2877IDD#PBF can be found in the application note AN136, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The selection of the correct transformer for the LTC2877IDD#PBF depends on the specific application requirements, such as input voltage, output voltage, and power rating. Analog Devices provides a transformer selection guide in the datasheet, and also recommends consulting with a transformer manufacturer or a qualified engineer for custom designs.
  • The maximum operating temperature range for the LTC2877IDD#PBF is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance and reliability at higher temperatures, and to ensure proper thermal management and cooling in the system design.
  • No, the LTC2877IDD#PBF is designed for isolated power conversion applications and should not be used in non-isolated applications. The device's internal isolation barrier is designed to provide electrical isolation between the input and output, and using it in a non-isolated application may compromise safety and reliability.
  • Troubleshooting issues with the LTC2877IDD#PBF typically involves checking the input and output voltages, current, and temperature, as well as verifying the correct configuration and operation of the device. Analog Devices provides a troubleshooting guide in the datasheet, and also recommends consulting with a qualified engineer or the manufacturer's technical support team for assistance.
