LTC2909CTS8-2.5#TRMPBF - Analog Devices

Description: Processor Supervisor 3 Active Low/Open Drain Automotive 8-Pin TSOT-23 T/R

Download LTC2909CTS8-2.5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

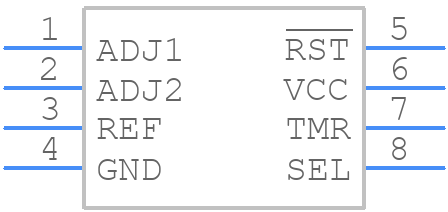

Symbol
LTC2909CTS8-2.5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2909CTS8-2.5#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT-23-1
click to zoom
3D Models
LTC2909CTS8-2.5#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TSOT-23-1
click to zoom

LTC2909CTS8-2.5#TRMPBF Details

  • Manufacturer Part Number:

    LTC2909CTS8-2.5#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MO-193, TSOT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Min (Vsup):

    0.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC2909CTS8-2.5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2909 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and wide.
  • To ensure accurate voltage monitoring with the LTC2909, it's essential to use a high-accuracy voltage reference, such as the internal 2.5V reference, and to minimize noise and interference on the input pins. Additionally, the input voltage range should be within the specified range, and the device should be operated within the recommended temperature range.
  • Yes, the LTC2909 can be used with an external voltage reference, but it's essential to ensure that the reference voltage is stable and accurate. The external reference voltage should be connected to the VREF pin, and the internal reference should be disabled by connecting the VREF_EN pin to GND.
  • The LTC2909 can be programmed for a specific voltage threshold by connecting the THRESH pin to a resistor divider network that sets the desired threshold voltage. The threshold voltage can be calculated using the formula provided in the datasheet, and the resistor values should be chosen to ensure accurate and stable threshold detection.
  • The response time of the LTC2909 is typically around 10μs, but it can vary depending on the input voltage, temperature, and other factors. The device is designed to provide fast and accurate voltage monitoring, and the response time can be affected by the input filter capacitor and the output load.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2909CTS8-2.5#TRMPBF Overview

Use the download button to access the LTC2909CTS8-2.5#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
