LTC2923IMS#PBF - Analog Devices

Description: Power Management Specialized - PMIC Pwr S Track Cntr

Download LTC2923IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

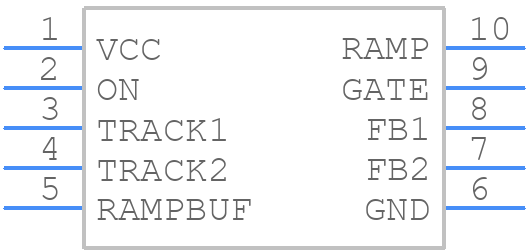

Symbol
LTC2923IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2923IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 MSOP
click to zoom
3D Models
LTC2923IMS#PBF - Analog Devices - 3D model - Small Outline Packages - 10 MSOP
click to zoom

LTC2923IMS#PBF Details

  • Manufacturer Part Number:

    LTC2923IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2923IMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2923IMS#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC2923IMS#PBF requires a single 2.7V to 5.5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low output voltage ripple to power the device. The power sequencing requirement is to power up the device after the input voltage has stabilized.
  • The LTC2923IMS#PBF can drive up to 100pF of capacitive load. However, it's recommended to limit the capacitive load to 10pF to 20pF for optimal performance and to prevent oscillations.
  • To troubleshoot issues with the LTC2923IMS#PBF, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input and output voltage levels using an oscilloscope, and verify that the device is properly connected and configured. Also, check for any layout or routing issues that may be causing the problem.
  • The LTC2923IMS#PBF is rated for operation up to 125°C. However, it's recommended to keep the junction temperature below 100°C to ensure optimal performance and reliability. Thermal considerations include providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation in the device.
