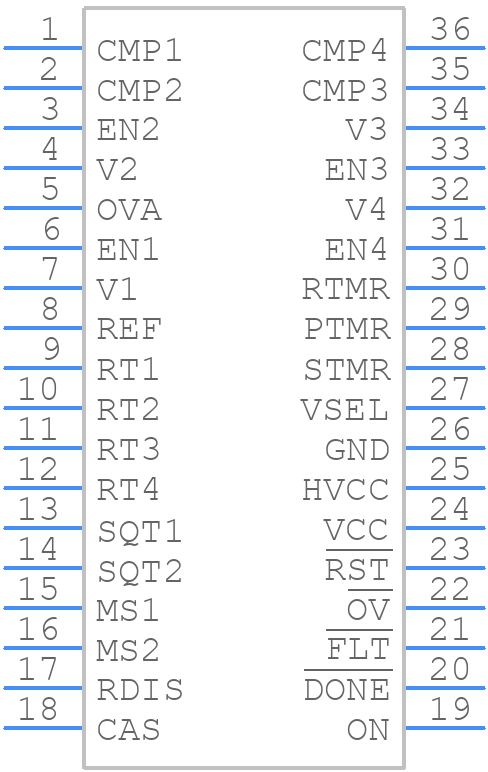

LTC2928CG#PBF - Analog Devices

LTC2928CG#PBF Details

• Manufacturer Part Number:

  LTC2928CG#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  5.30 MM, PLASTIC, SSOP-36

• Pin Count:

  36

• Manufacturer Package Code:

  05-08-1640 (G24)

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  SEATED HT-CALCULATED

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  POWER SEQUENCER

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  2.9 V

• Input Voltage-Nom:

  3.3 V

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Outputs:

  4

• Number of Terminals:

  36

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP36,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OUTPUT OVER VOLTAGE; INPUT UNDER VOLTAGE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2.9 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Threshold Voltage-Nom:

  +0.5V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm
