LTC2936CUFD#TRPBF - Analog Devices

Description: Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs

Download LTC2936CUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

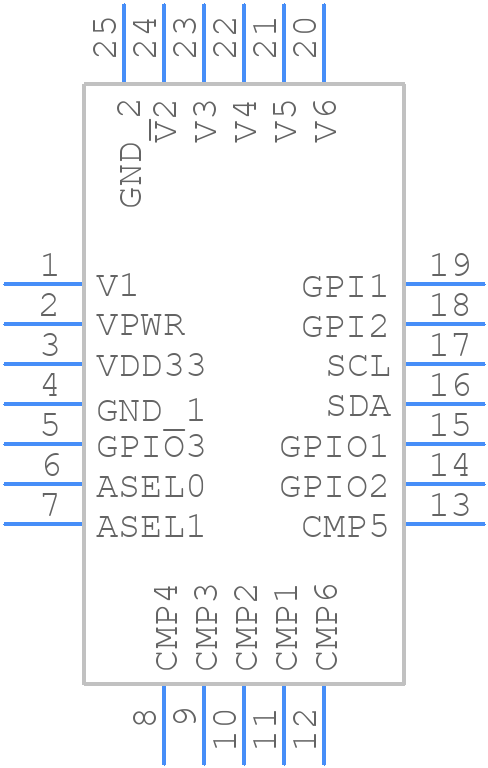

LTC2936CUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2936CUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_1
click to zoom
3D Models
LTC2936CUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_1
click to zoom

LTC2936CUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC2936CUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    13.9 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1V

  • Width:

    4 mm

LTC2936CUFD#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2936CUFD can be found in the application note AN136, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The LTC2936CUFD is a highly configurable device, and the voltage output can be set using a combination of resistors and capacitors. The datasheet provides a formula for calculating the output voltage, and the application note AN136 provides examples of different configurations.
  • The maximum input voltage that the LTC2936CUFD can handle is 15V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 14V for optimal performance and reliability.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use the correct output capacitor value, and ensure that the input voltage is within the specified range. Additionally, the datasheet provides a formula for calculating the minimum output capacitance required for stability.
  • The LTC2936CUFD is rated for operation up to 125°C, but it's essential to consider the thermal management and ensure that the device is properly cooled to prevent overheating. The application note AN136 provides guidelines for thermal management and heat sinking.
