LTC2936IUFD#TRPBF - Analog Devices

Description: Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs,3.4V to 13.9V,–40°C to 85°C

Download LTC2936IUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

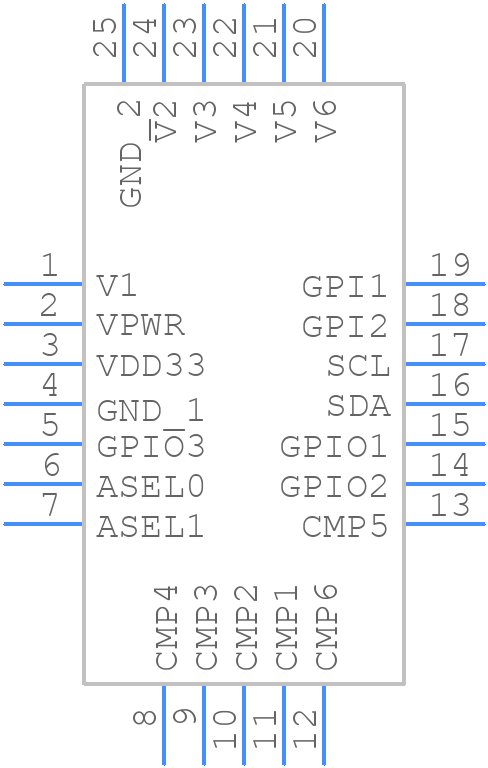

LTC2936IUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2936IUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_2025
click to zoom
3D Models
LTC2936IUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_2025
click to zoom

LTC2936IUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC2936IUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    13.9 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1V

  • Width:

    4 mm

LTC2936IUFD#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2936IUFD can be found in the application note AN136, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The LTC2936IUFD is a highly configurable device, and the voltage output can be set using the resistive divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, Analog Devices provides a voltage calculator tool on their website to simplify the process.
  • The maximum input voltage that the LTC2936IUFD can handle is 15V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 14V for optimal performance and reliability.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and add a small ceramic capacitor (typically 10nF to 100nF) between the VOUT and GND pins to filter out high-frequency noise. Additionally, the datasheet provides guidance on selecting the correct output capacitor and ESR values to ensure stability.
  • The typical startup time for the LTC2936IUFD is around 1ms, but this can vary depending on the input voltage, output voltage, and external component values. The datasheet provides more detailed information on the startup time and soft-start characteristics.
