LTC2946CMS-1#PBF - Analog Devices

Description: IC ENERGY MONITOR I2C 16MSOP

Download LTC2946CMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

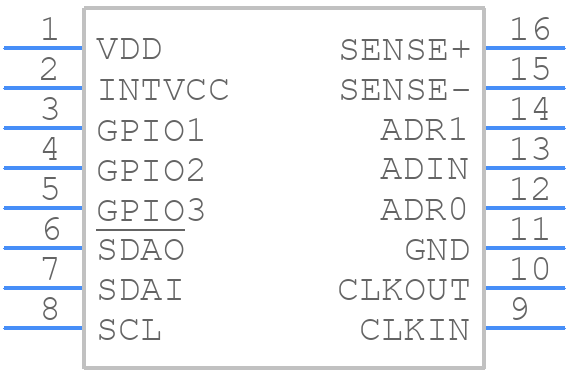

LTC2946CMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2946CMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom
3D Models
LTC2946CMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead 1Plastic MSOP
click to zoom

LTC2946CMS-1#PBF Details

  • Manufacturer Part Number:

    LTC2946CMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.3V

  • Width:

    3 mm

LTC2946CMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2946 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate current measurements, use a sense resistor with a low temperature coefficient, keep the sense resistor close to the device, and use a Kelvin connection to the sense resistor. Also, make sure to calibrate the device according to the datasheet instructions.
  • The maximum voltage rating for the VCC pin of the LTC2946 is 5.5V. Exceeding this voltage can damage the device.
  • Yes, the LTC2946 can measure current in both directions. The device has a bidirectional current sense capability, allowing it to measure both positive and negative currents.
  • The LTC2946 has an overcurrent detection feature that can be used to detect overcurrent conditions. When an overcurrent condition is detected, the device can be configured to generate an alert signal or shut down the power supply to prevent damage.
