LTC2952CF#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2952CF#PBF - PUSHBUTTON ON/OFF CONTROLLER, TSSOP-20

Download LTC2952CF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

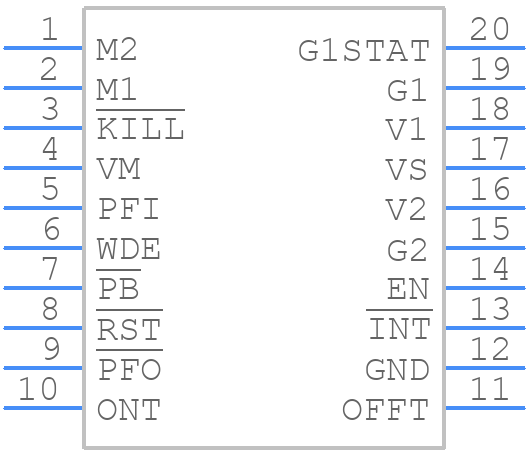

LTC2952CF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2952CF#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC2952CF#PBF - Analog Devices - 3D model - Small Outline Packages - 20-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC2952CF#PBF Details

  • Manufacturer Part Number:

    LTC2952CF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1650 (F20)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PUSHBUTTON ON/OFF CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC2952CF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2952CF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the PCB layout is well-designed, and the input and output voltage rails are well-bypassed. Additionally, the datasheet recommends a minimum output capacitance of 10uF to ensure stability.
  • The maximum input voltage that the LTC2952CF can handle is 28V. Exceeding this voltage can damage the IC. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent damage from voltage spikes or transients.
  • The LTC2952CF is rated for operation up to 125°C. However, the IC's performance and reliability may degrade at high temperatures. It's recommended to derate the IC's performance and ensure proper thermal management, such as using a heat sink or a thermal pad, to prevent overheating.
  • The LTC2952CF's output voltage can be programmed using an external resistor divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2952CF#PBF Overview

Use the download button to access the LTC2952CF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
