LTC2953IDD-1#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2953IDD-1#PBF - Special Function IC, Push Button On/Off Controller with Voltage Monitoring, 2.7 V to 27 V, DFN-12

Download LTC2953IDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

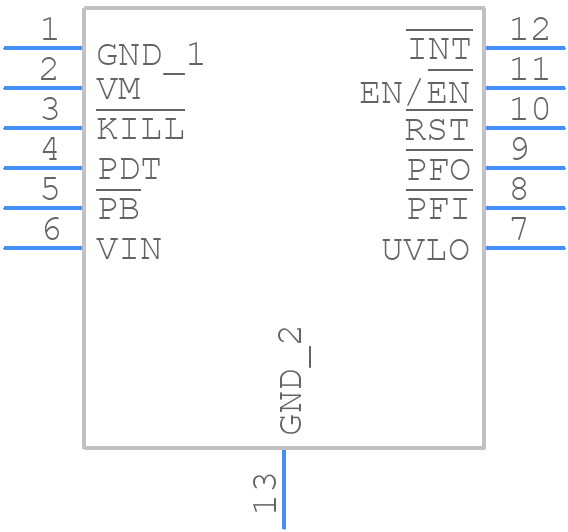

LTC2953IDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2953IDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC2953IDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC2953IDD-1#PBF Details

  • Manufacturer Part Number:

    LTC2953IDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PUSHBUTTON ON/OFF CONTROLLER
