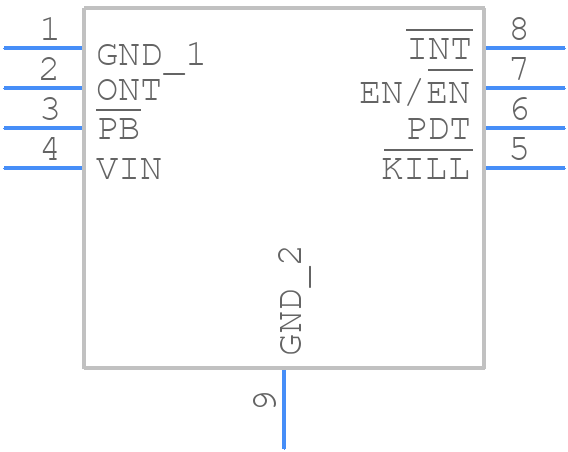

LTC2954CDDB-2 - Analog Devices

LTC2954CDDB-2 Details

• Manufacturer Part Number:

  LTC2954CDDB-2

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  3 X 2 MM, PLASTIC, M0-229WECD-1, DFN-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  2

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  PUSHBUTTON ON/OFF CONTROLLER

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e0

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  26.4 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  2 mm
